DTC C1251 / 51: ABS Pump Motor Lock: Wiring Diagram

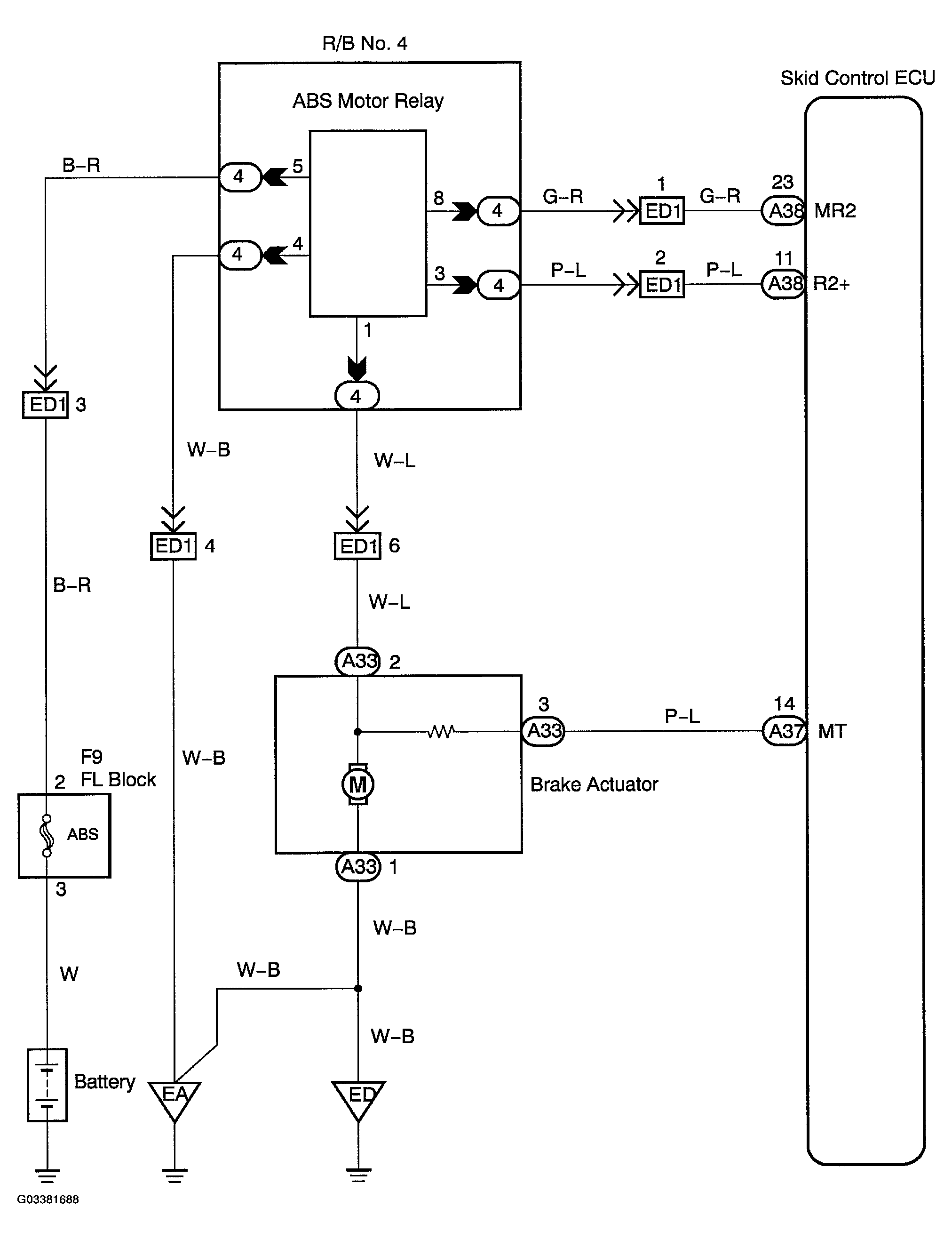

Fig 1: Wiring Diagram - ABS Pump Motor Lock

G03381688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
