DTC C1203 / 53: ECM Communication Circuit Malfunction: Wiring Diagram

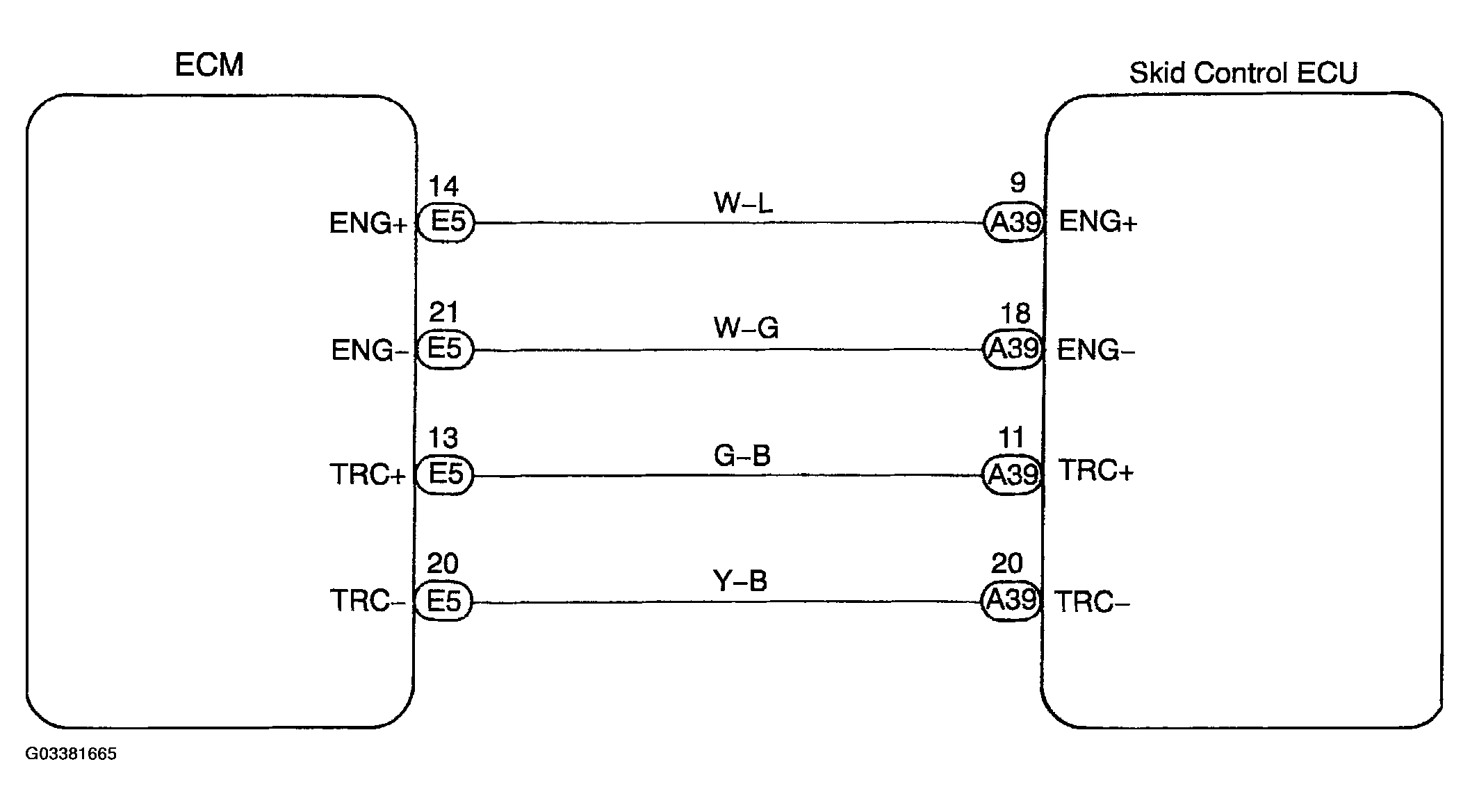

Fig 1: Wiring Diagram - ECM Communication Circuit Malfunction

G03381665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
