DTC C0278 / 11, C0279 / 12: ABS Solenoid Relay Circuit: Wiring Diagram

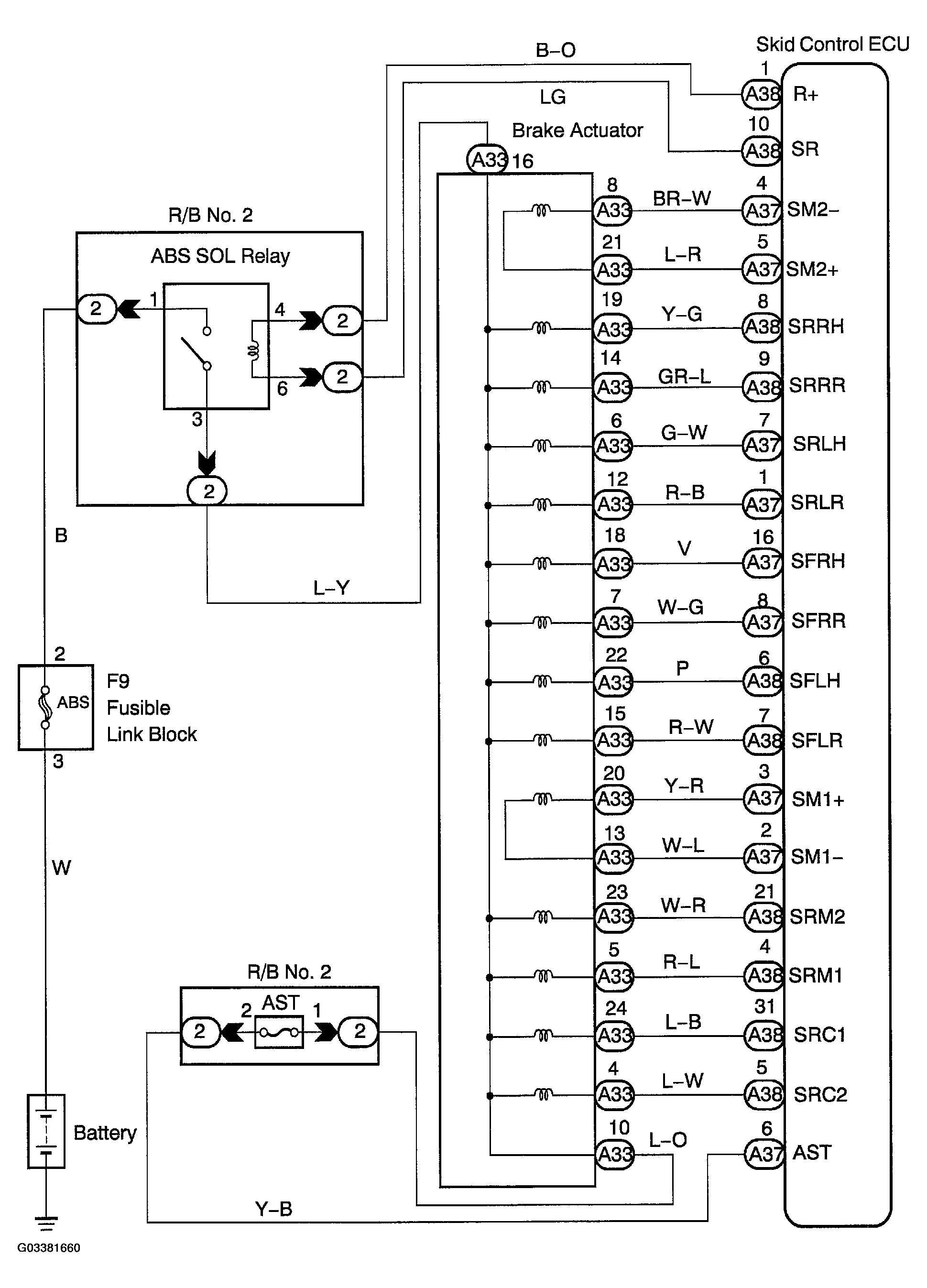

Fig 1: Wiring Diagram - ABS Solenoid Relay Circuit

G03381660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
