DTC C0273 / 13, C0274 / 14: ABS Motor Relay Circuit: Wiring Diagram

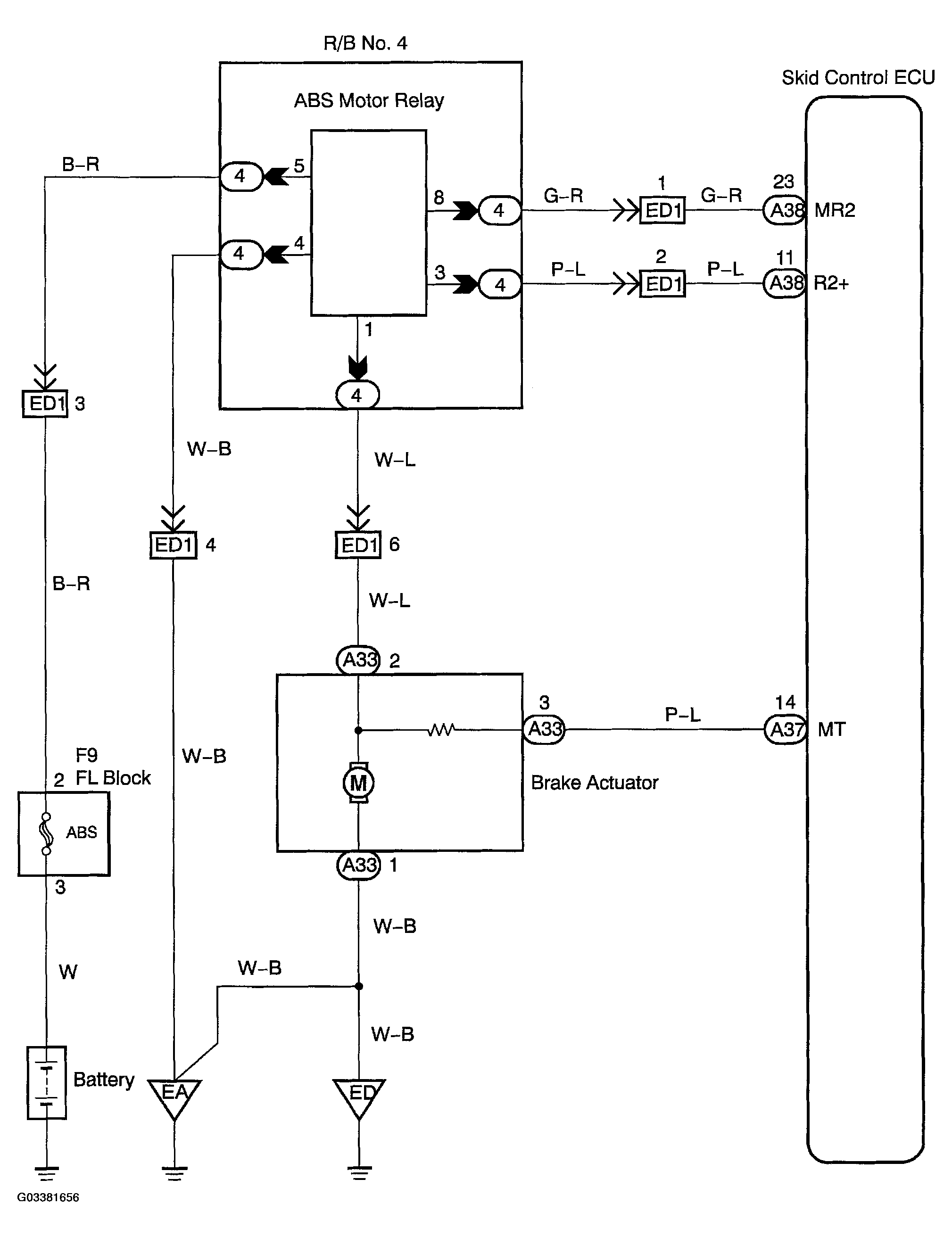

Fig 1: Wiring Diagram - ABS Motor Relay Circuit

G03381656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
