DTC Always ON* Malfunction in ECU: Wiring Diagram

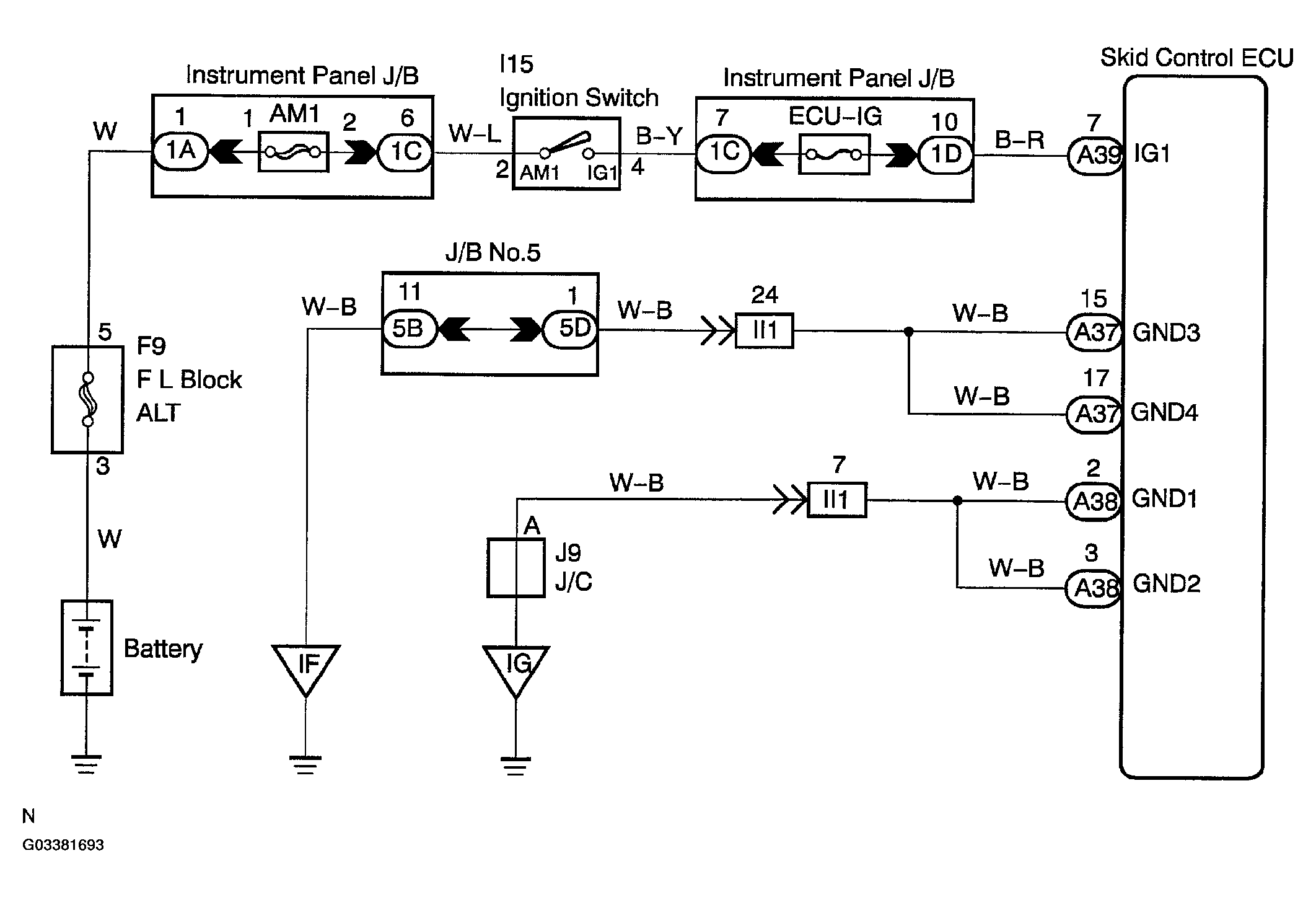

Fig 1: Wiring Diagram - Malfunction In ECU (ABS WARNING LIGHT)

G03381693

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
