DTC Always ON* Malfunction in ECU VSC Warning Light Circuit: Wiring Diagram

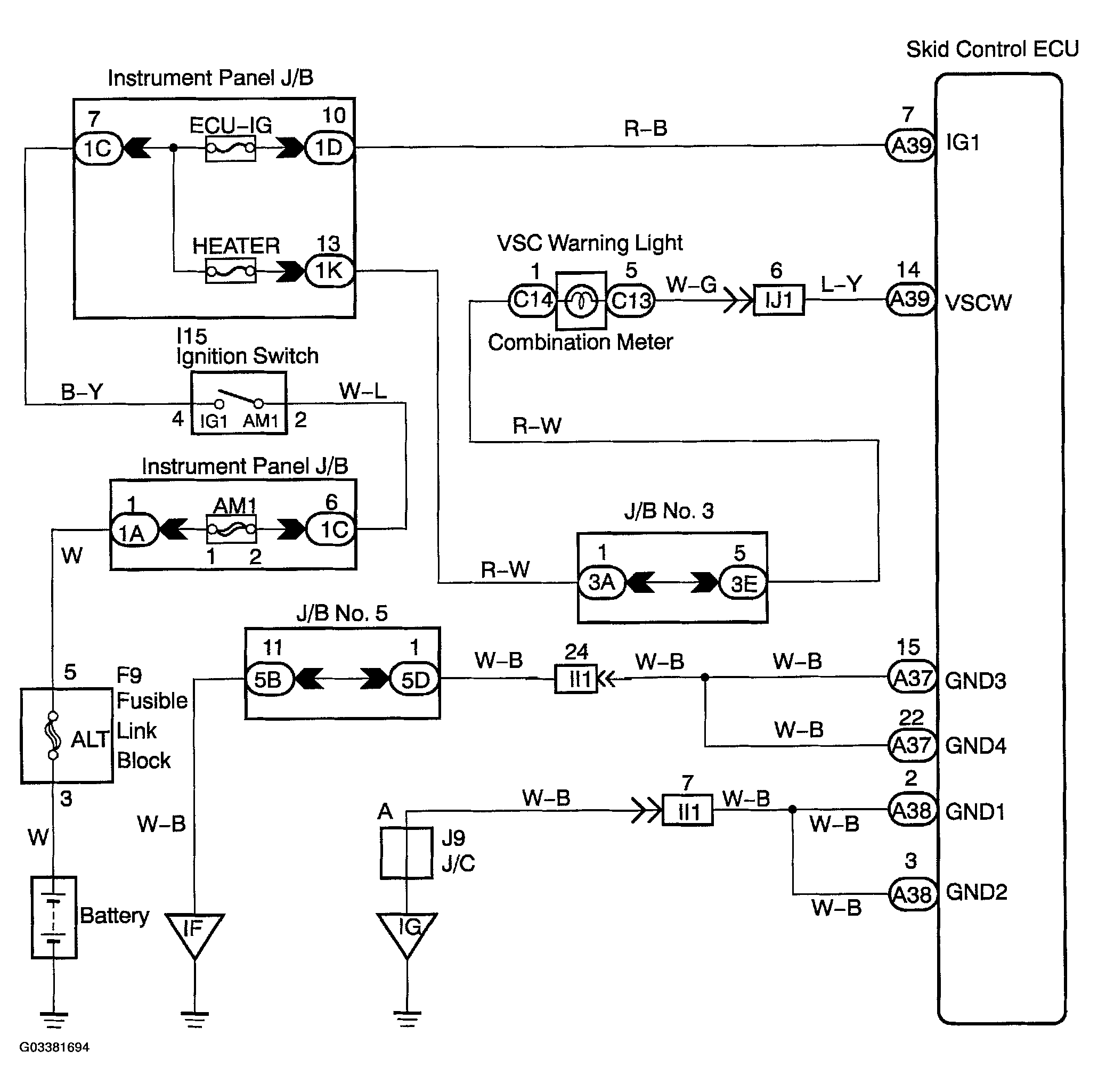

Fig 1: Wiring Diagram - Malfunction In ECU VSC Warning Light Circuit

G03381694

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
