Circuit Description

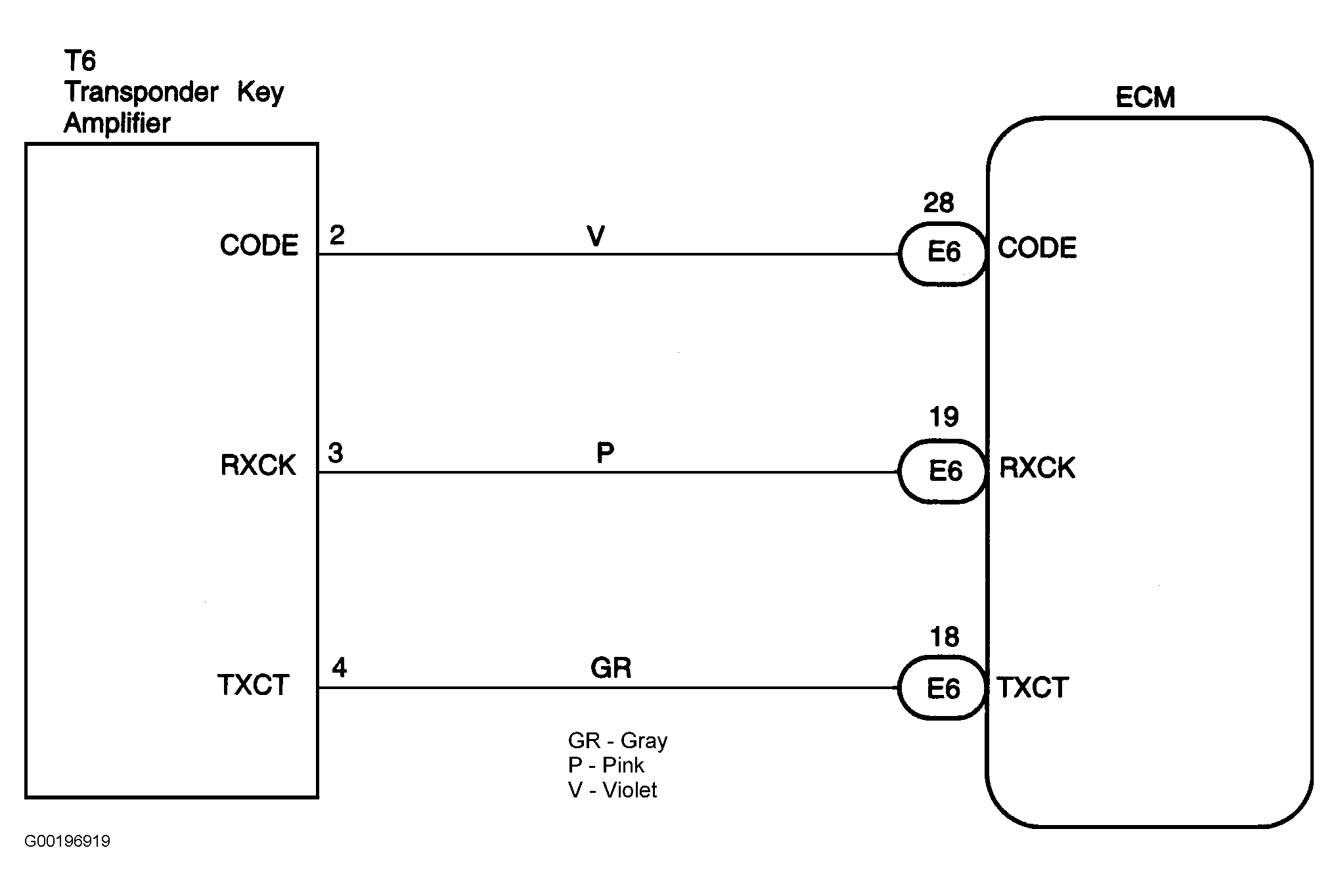

This code is detected when although the communication has been performed normally, an error occurs. For circuit diagram, see Figure.

• DTC Detecting Condition -  Communication error.
• Trouble Area -  Wiring harness, transponder key amplifier, ECM, communication contests or unregistered key inserted before.
