Rear interior light and back door courtesy switch circuit: Wiring Diagram

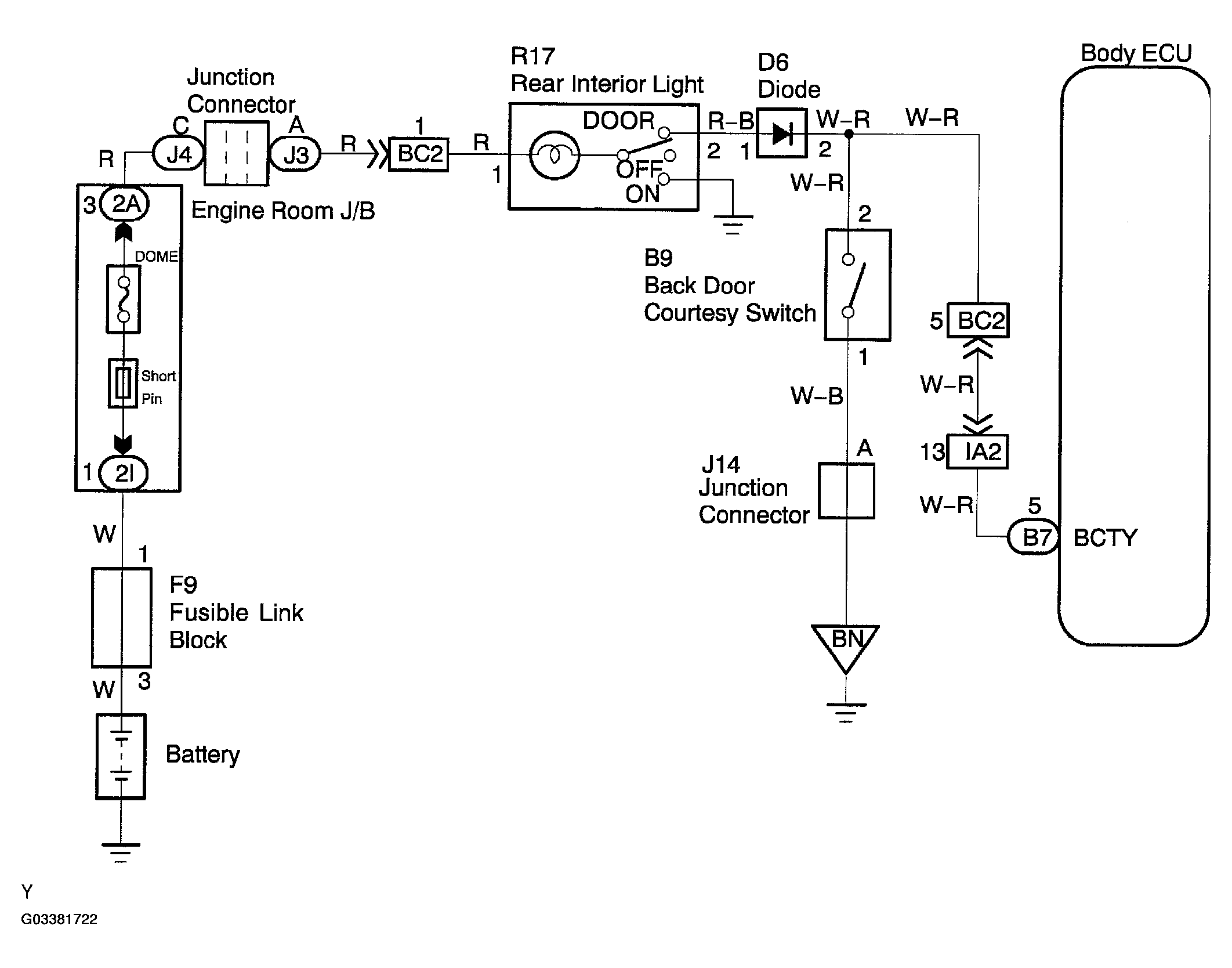

Fig 1: Rear Interior Light And Back Door Courtesy Switch Circuit - Wiring Diagram
G03381722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
