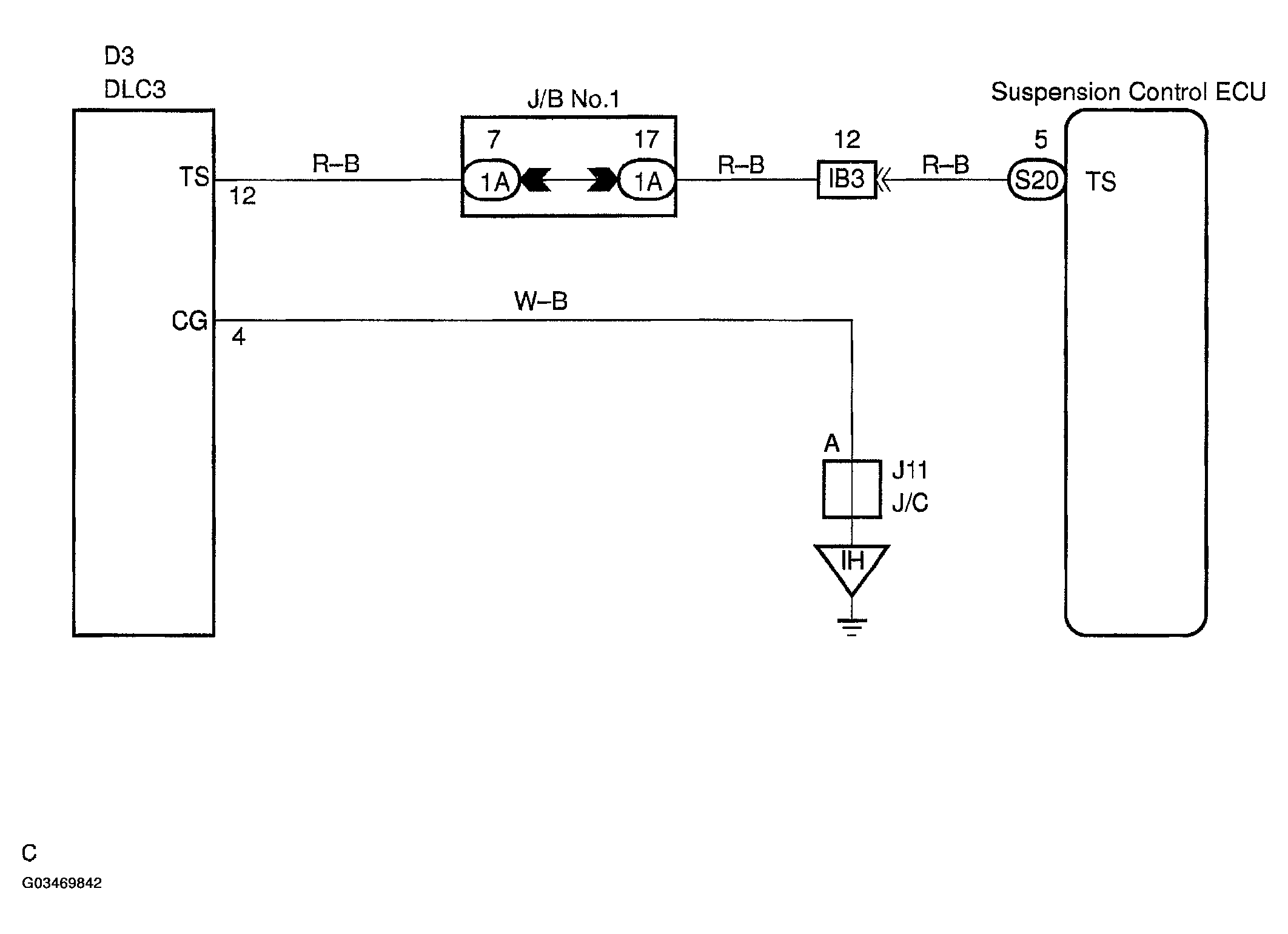

Home >> Lexus >> 2003 >> GX 470 >> Repair and Diagnosis >> Suspension >> Electronic Suspension >> Electronic Modulated Suspension & Rear Air Suspension System - Diagnosis >> TS Terminal Circuit >> Wiring Diagram
