DTC Check (Using Hand-Held Tester)

  1. Checking DTCs using the Hand-held tester.
    1. Connect the hand-held tester to DLC3.
    2. Turn the ignition switch ON.
    3. Read DTCs by following the prompts on the tester screen.

    HINT:

    Refer to the hand-held tester operator's manual for further details.

  2. Clearing the DTCs using the Hand-held tester.
    1. Connect the hand-held tester to DLC3
    2. Turn the ignition switch ON.
    3. Erase the DTCs following the prompts on the tester screen.

    HINT:

    Refer to the hand-held tester operator's manual for further details.

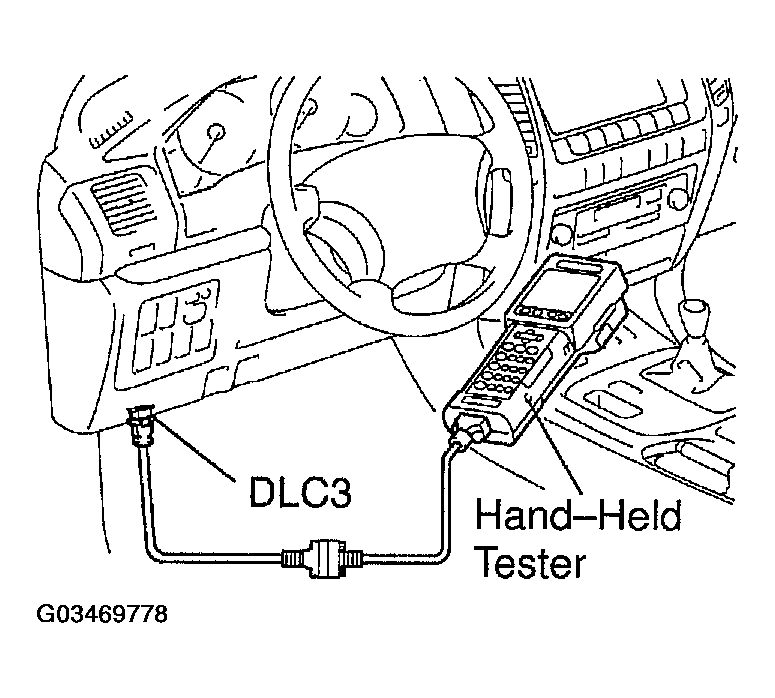

    Fig 1: Connecting Hand-Held Tester To DLC3
    G03469778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
