Electronic Modulated Suspension & Rear Air Suspension System - Diagnosis: Location

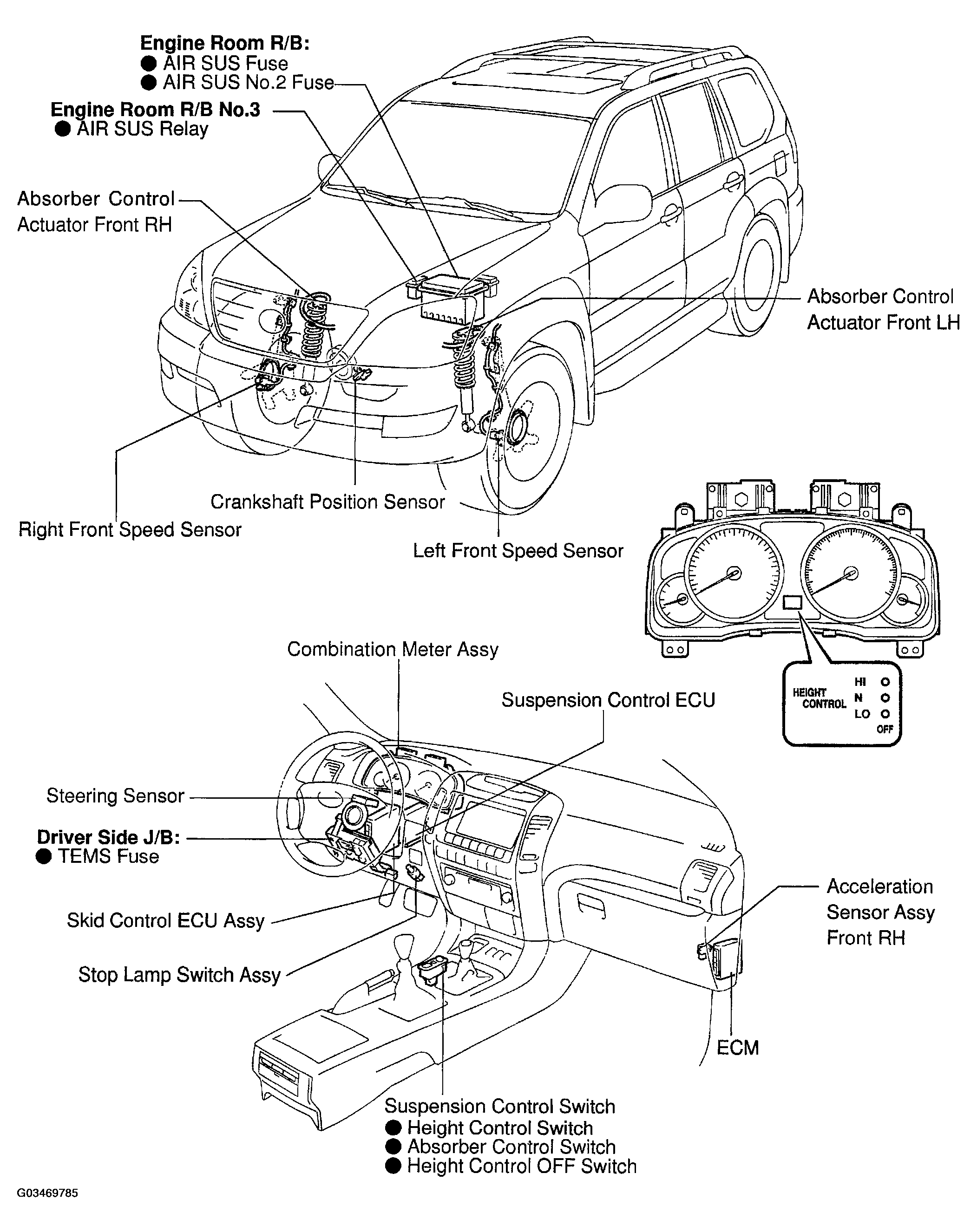

Fig 1: Locating Electronic Modulated Suspension & Rear Air Suspension System Components (1 Of 2)
G03469785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

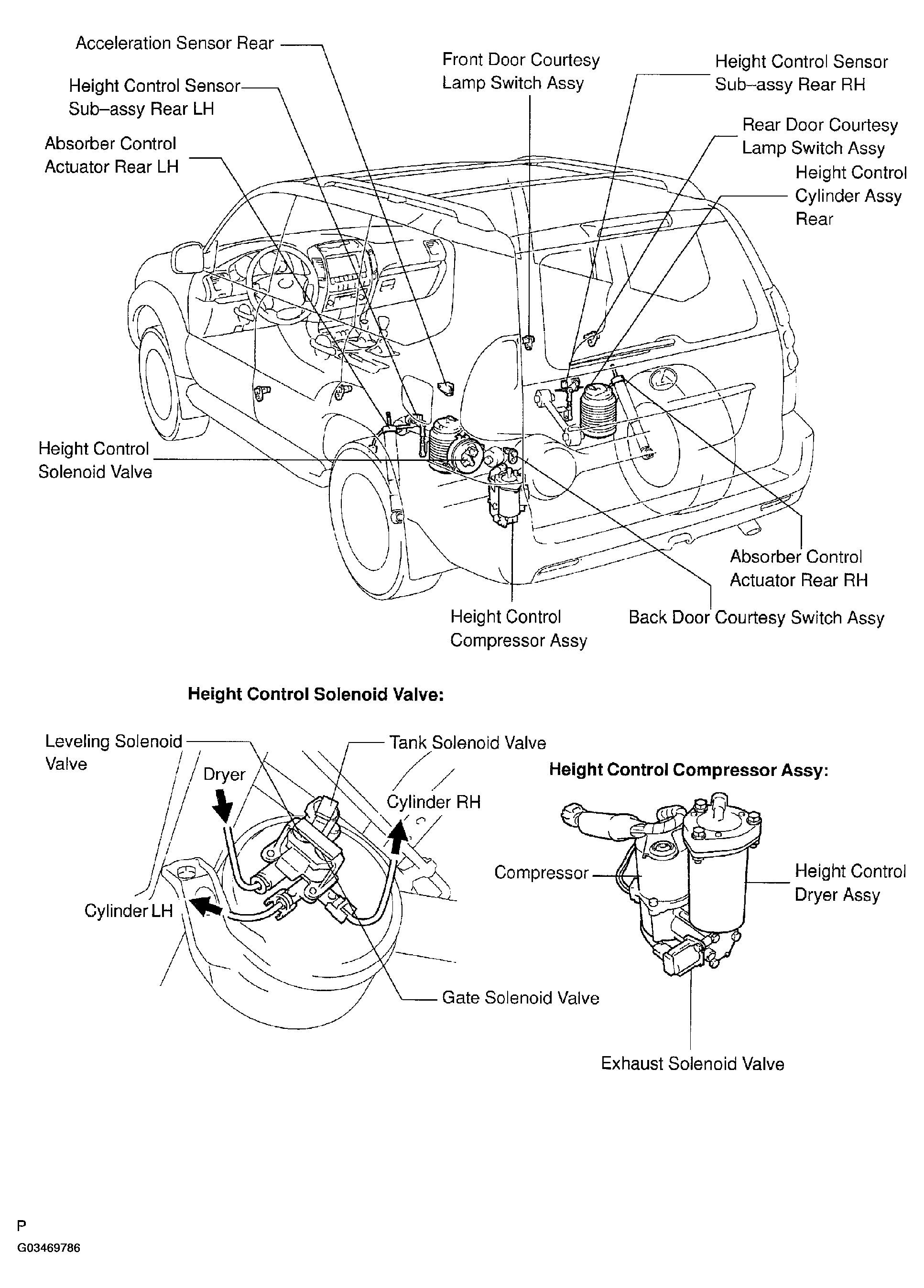

Fig 2: Locating Electronic Modulated Suspension & Rear Air Suspension System Components (2 Of 2)
G03469786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
