Height Control Indicator Lamp Circuit: Wiring Diagram

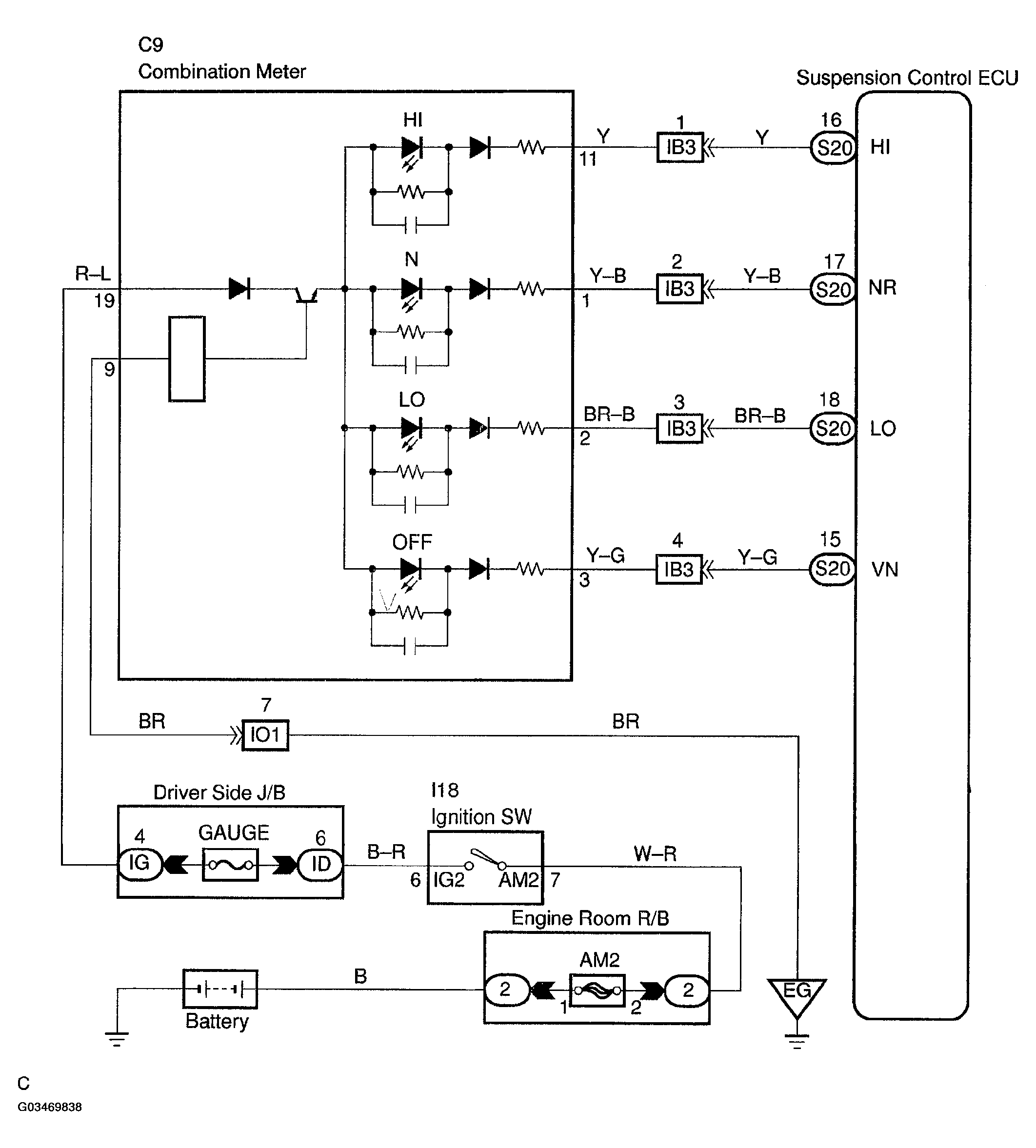

Fig 1: Identifying Height Control Indicator Lamp Circuit Wiring Diagram

G03469838

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
