DTC C1788/88: Height Control Off Switch Circuit: Wiring Diagram

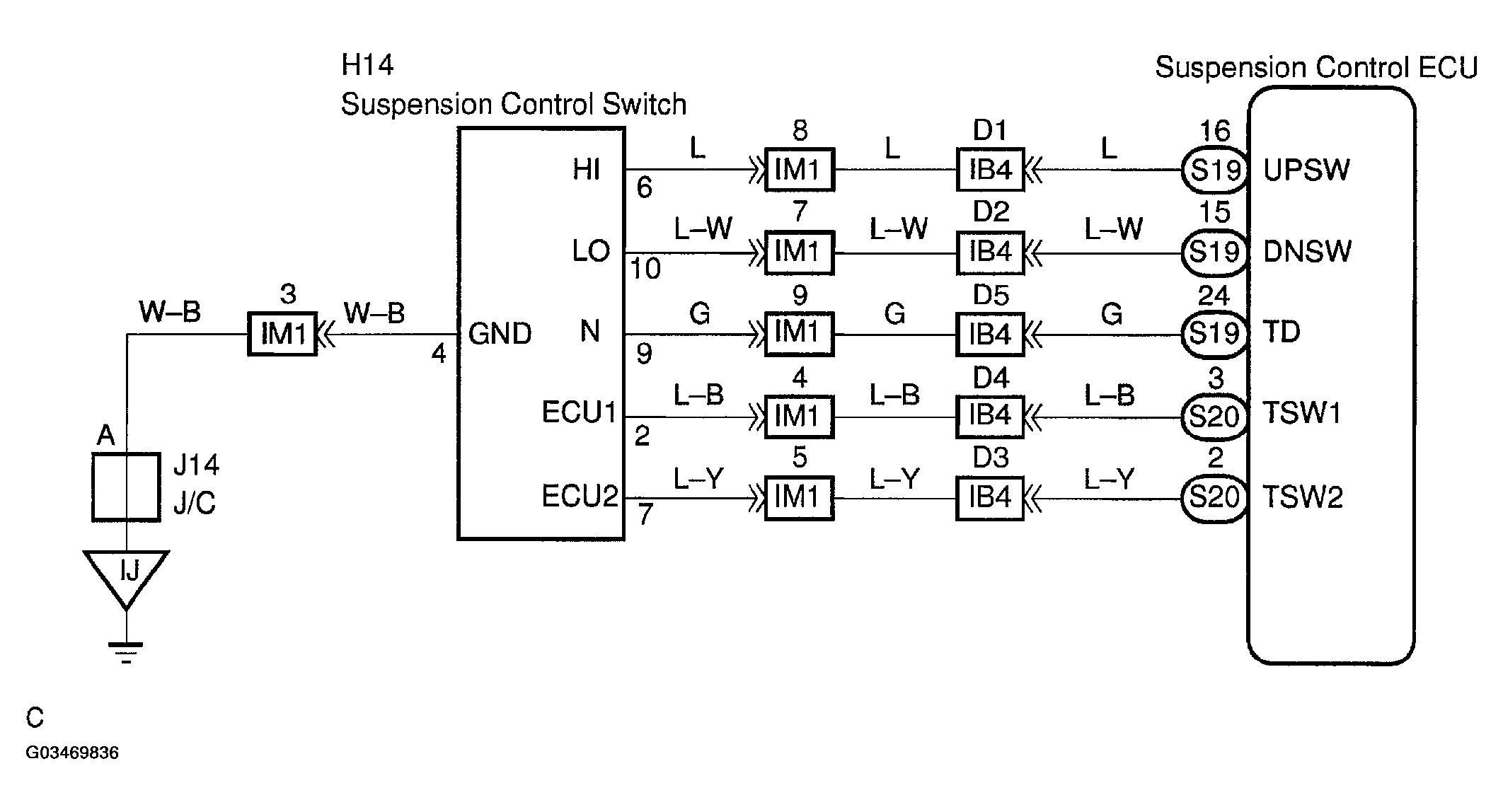

Fig 1: Identifying Height Control OFF Switch Circuit Wiring Diagram

G03469836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
