DTC C1786/86: Height Control Switch Circuit: Wiring Diagram

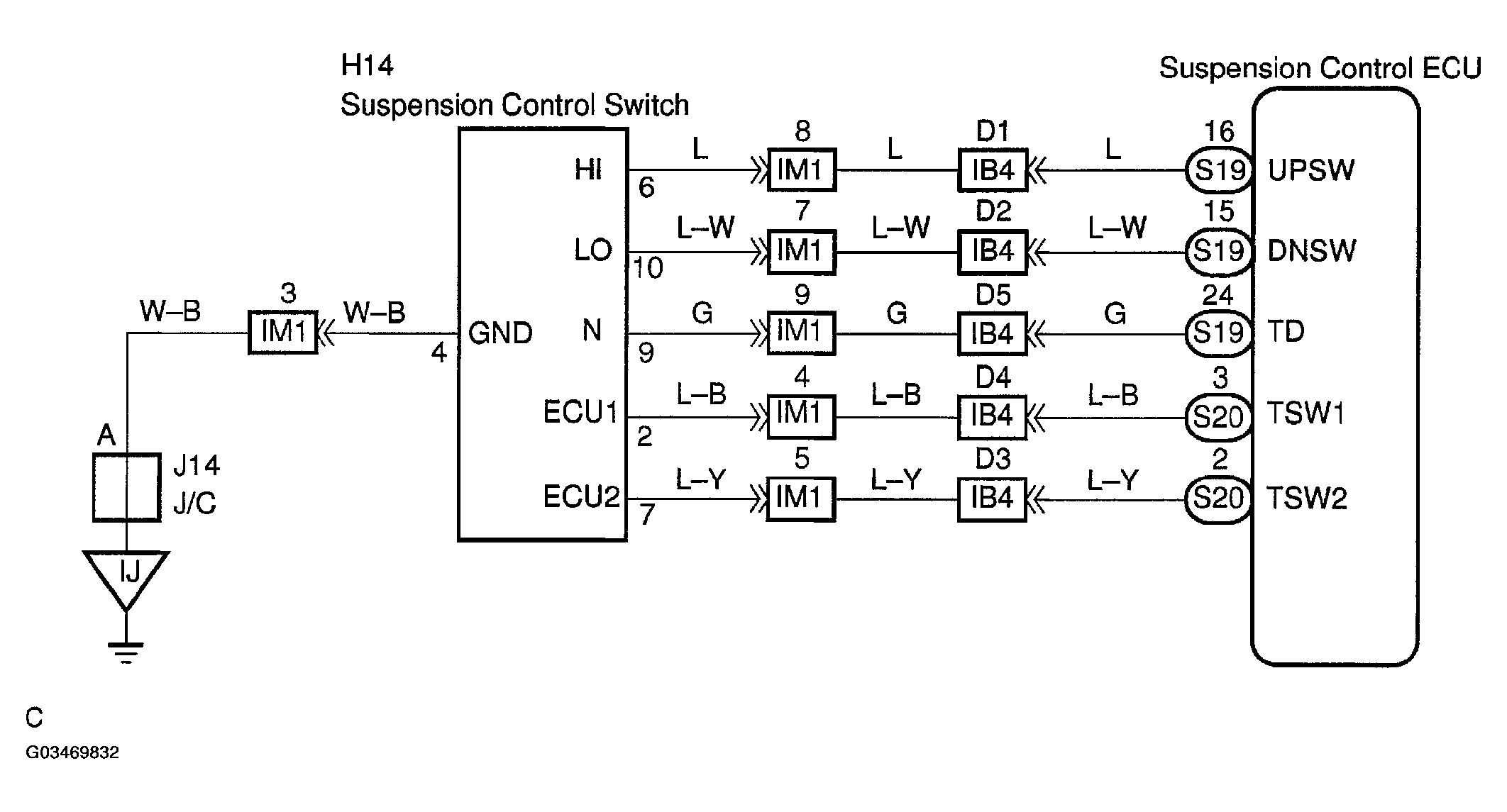

Fig 1: Identifying Height Control Switch Circuit Wiring Diagram

G03469832

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
