DTC C1782/82: Stop Light Switch Circuit: Wiring Diagram

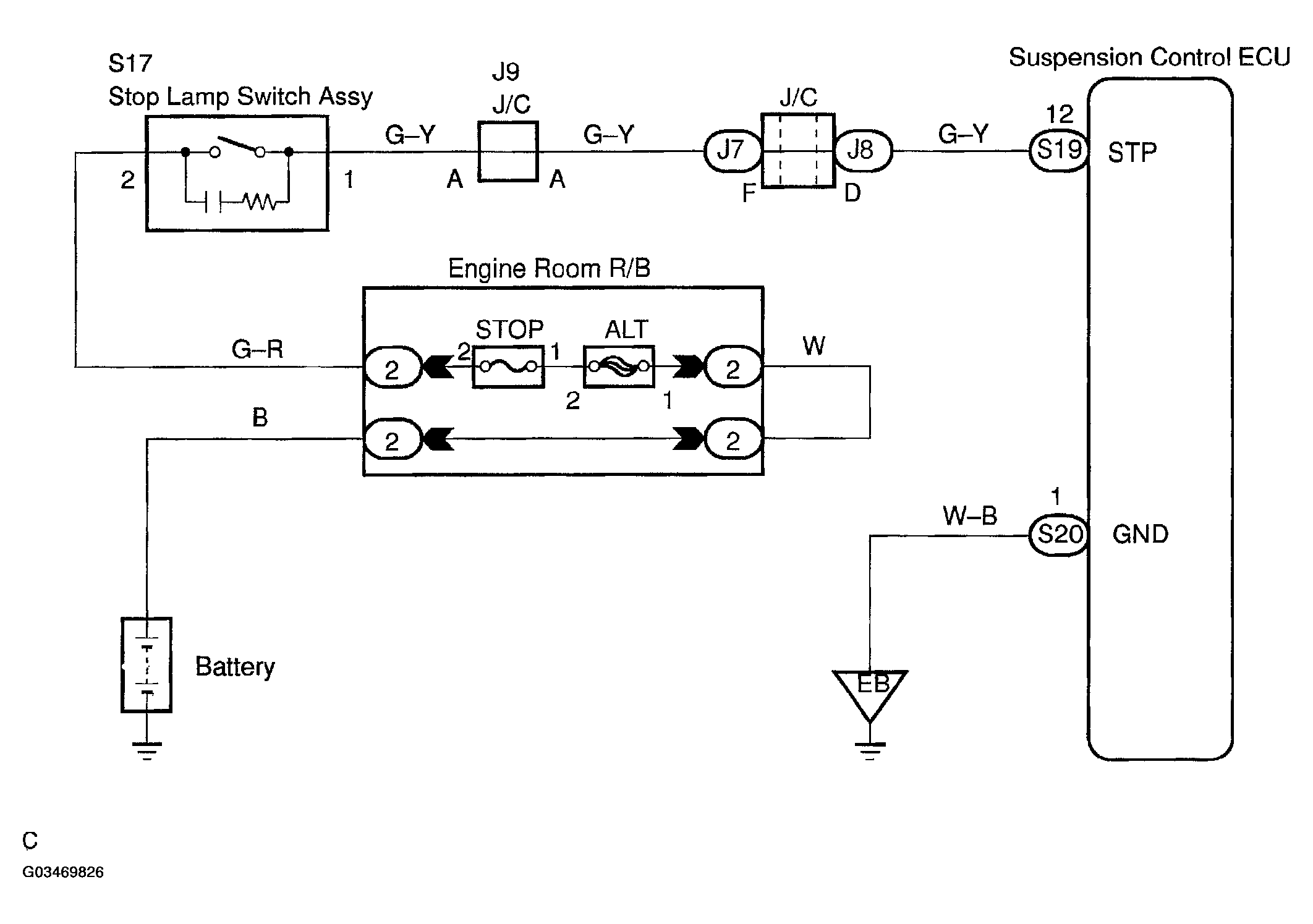

Fig 1: Identifying Stop Light Switch Circuit Wiring Diagram

G03469826

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
