DTC C1779/79, C1797/97: Crankshaft Position Sensor Circuit, Crankshaft Position Sensor Circuit: Wiring Diagram

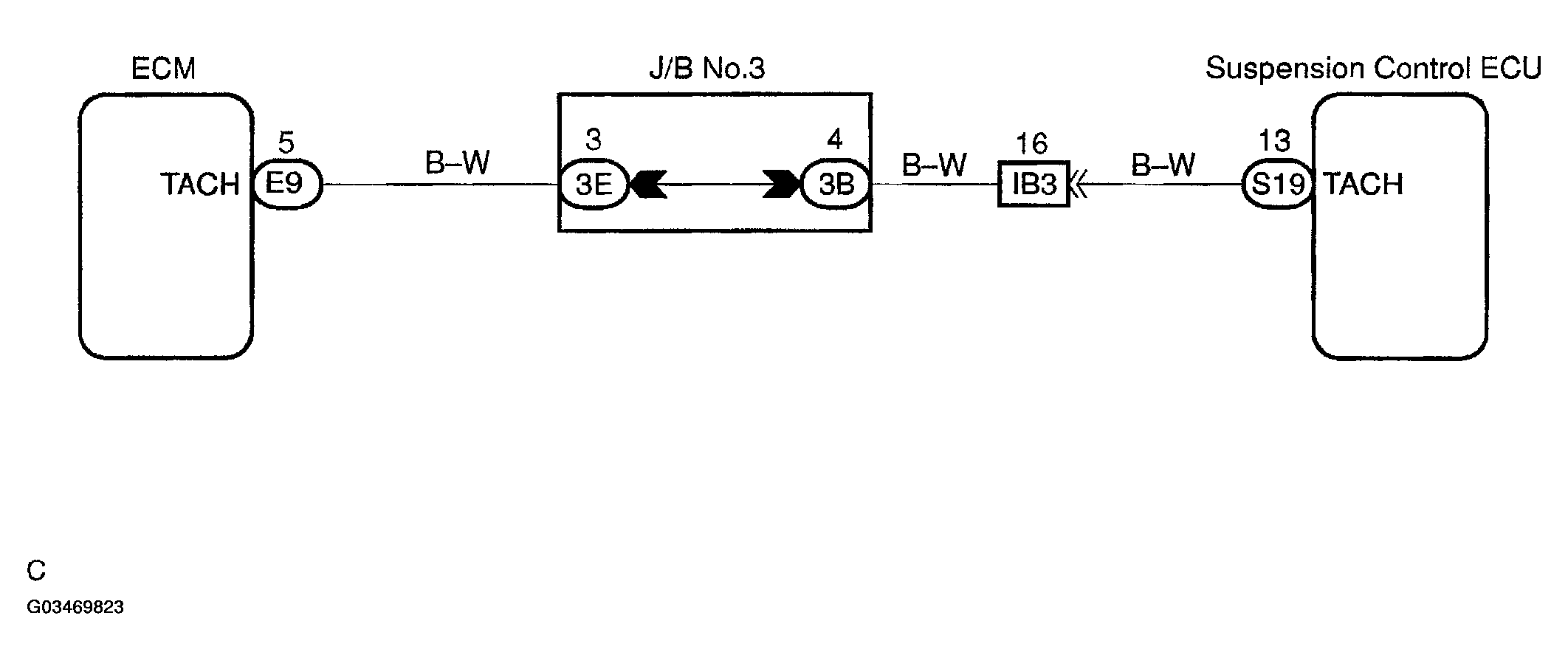

Fig 1: Identifying Crankshaft Position Sensor Circuit Wiring Diagram
G03469823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
