DTC C1777/77: Steering Angle Sensor Circuit: Wiring Diagram

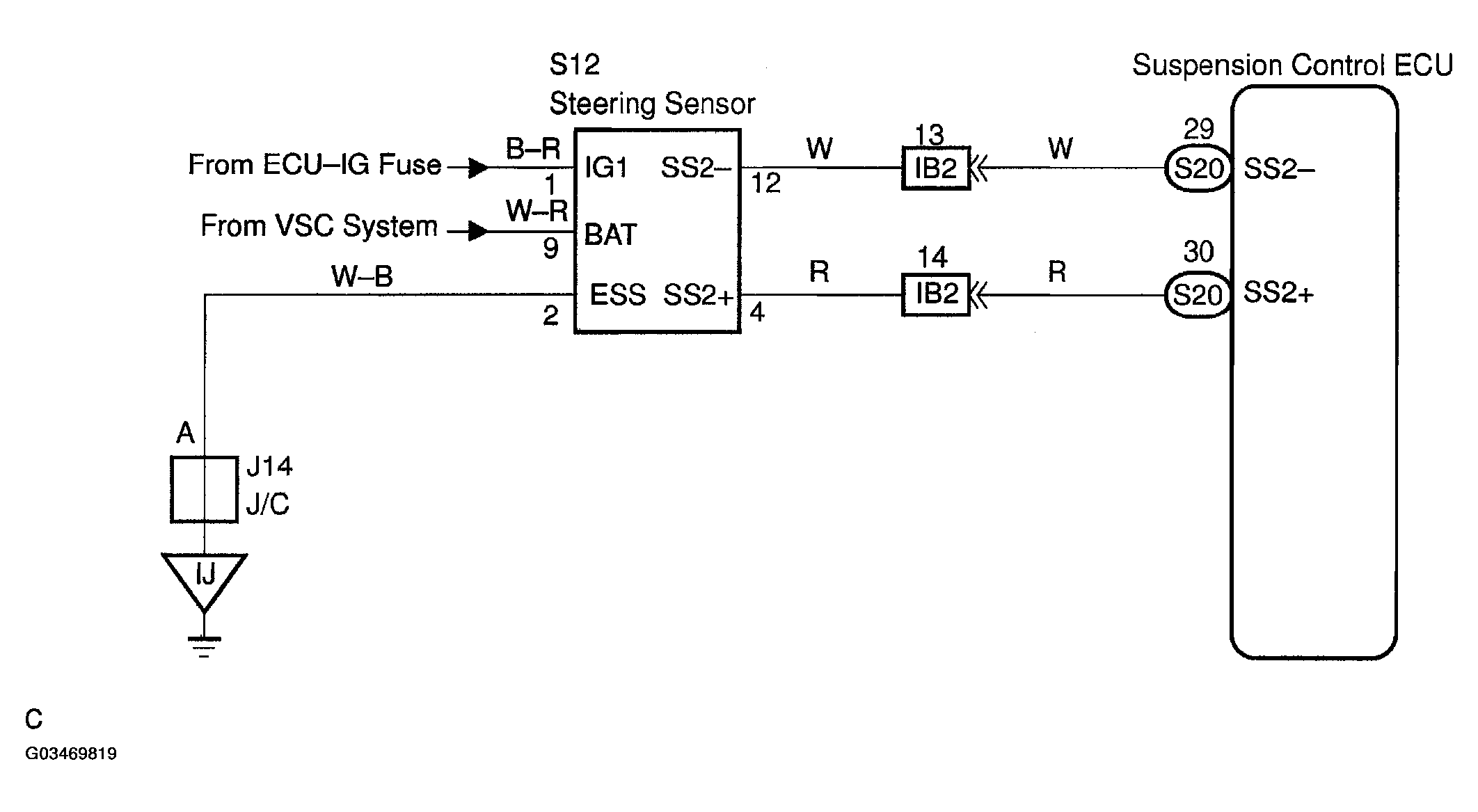

Fig 1: Identifying Steering Angle Sensor Circuit Wiring Diagram

G03469819

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
