DTC C1776/76, C1794/94, C1795/95: Speed Sensor Circuit, Right Front Speed Sensor Circuit, Left Front Speed Sensor Circuit: Wiring Diagram

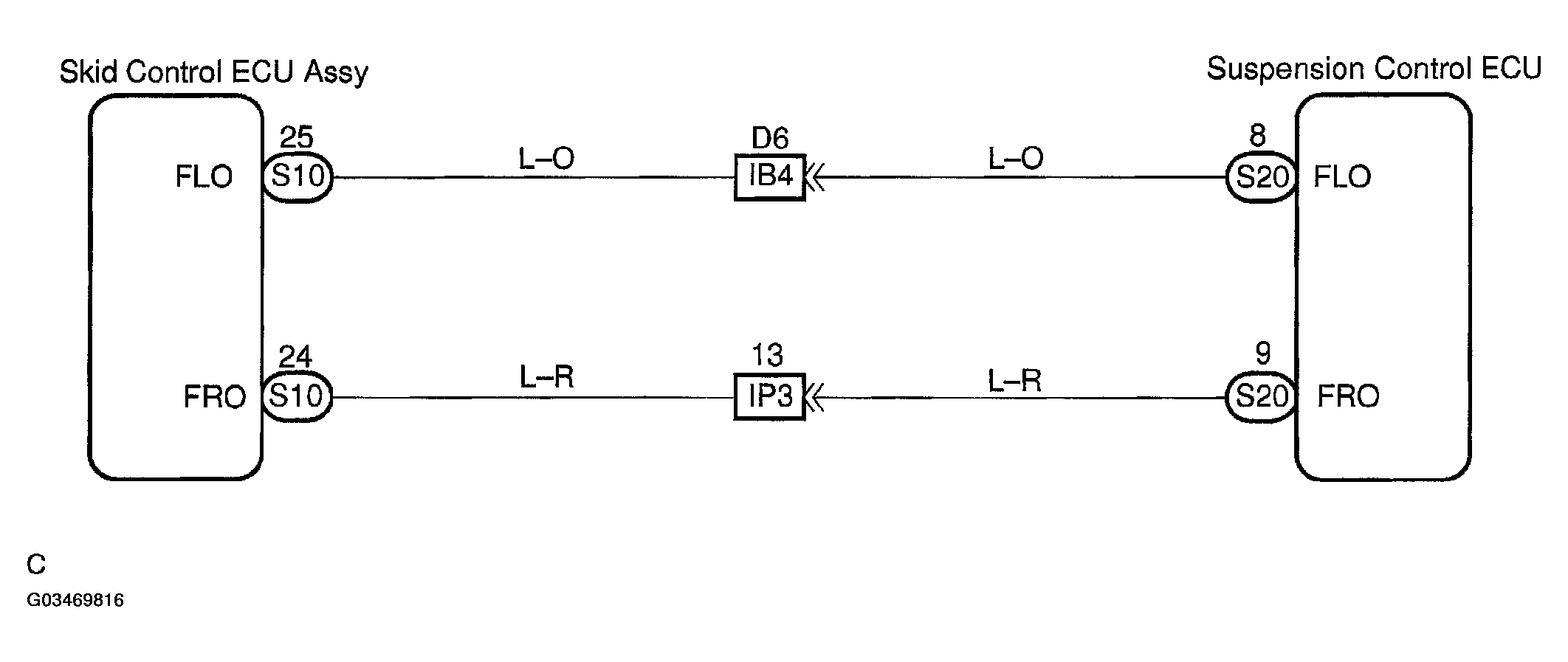

Fig 1: Identifying Speed Sensor Circuit Wiring Diagram
G03469816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
