DTC C1774/74: Power Source Circuit: Wiring Diagram

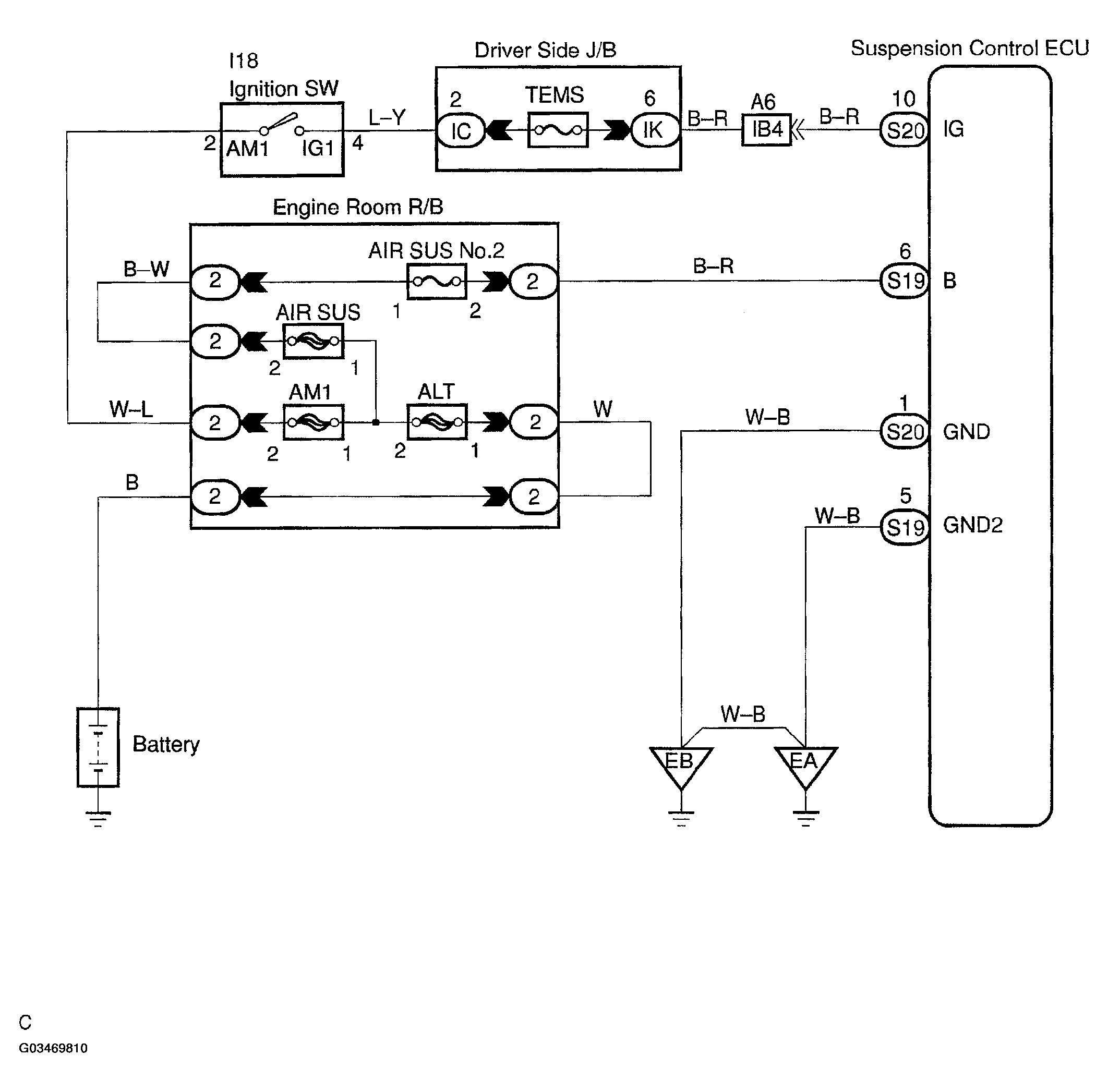

Fig 1: Identifying Power Source Circuit Wiring Diagram

G03469810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
