DTC C1741/41: Air Sus Relay Circuit: Wiring Diagram

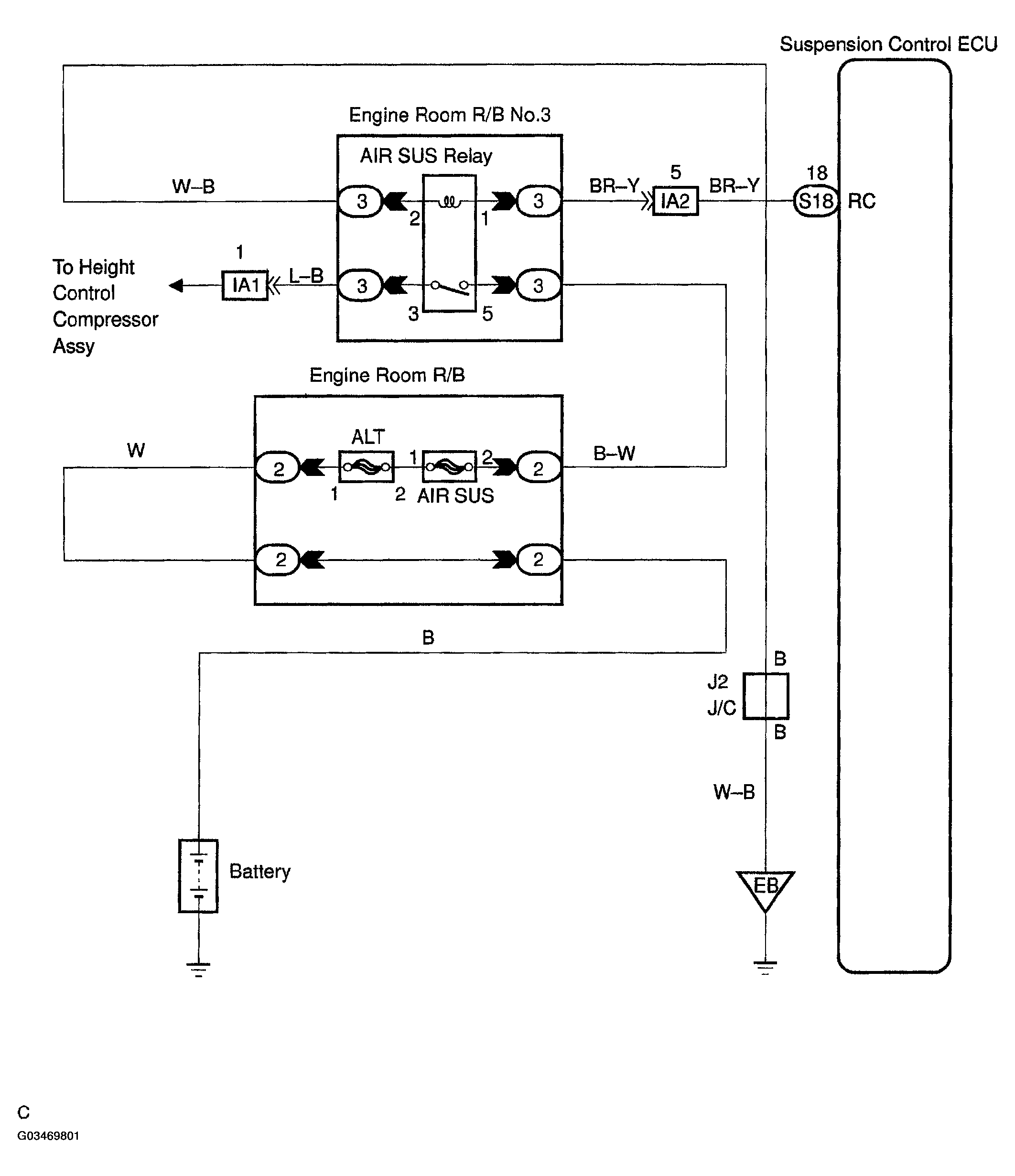

Fig 1: Identifying AIR SUS Relay Circuit Wiring Diagram

G03469801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
