DTC C1733/33, C1734/34, C1735/35, C1744/44: Gate Solenoid Valve Circuit, Leveling Solenoid Valve Circuit, Exhaust Solenoid Valve Circuit, Tank Solenoid Valve Circuit: Wiring Diagram

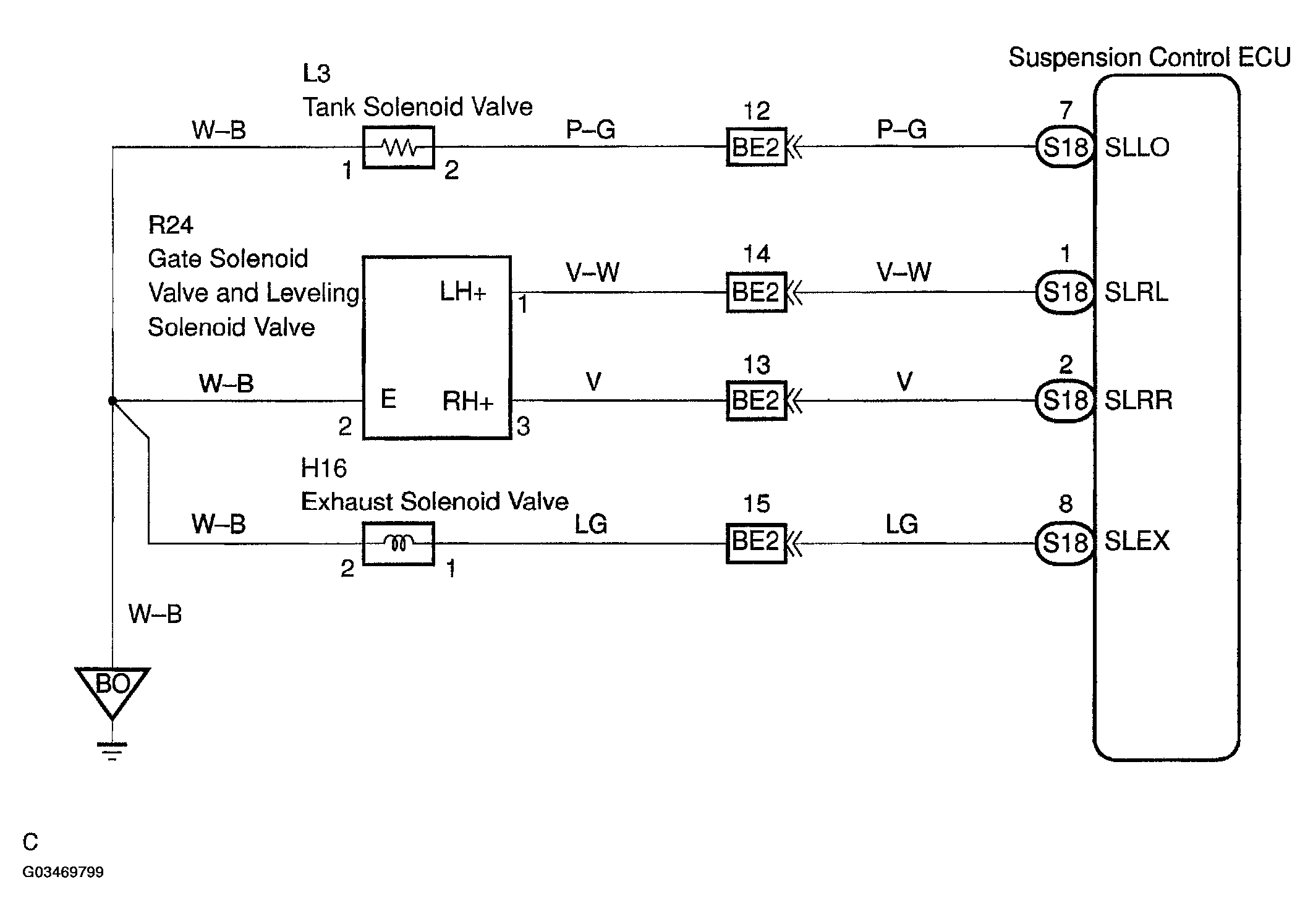

Fig 1: Identifying Solenoid Valve Circuit Wiring Diagram
G03469799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
