DTC C1713/13, C1714/14: Right Rear Height Control Sensor Circuit, Left Rear Height Control Sensor Circuit: Wiring Diagram

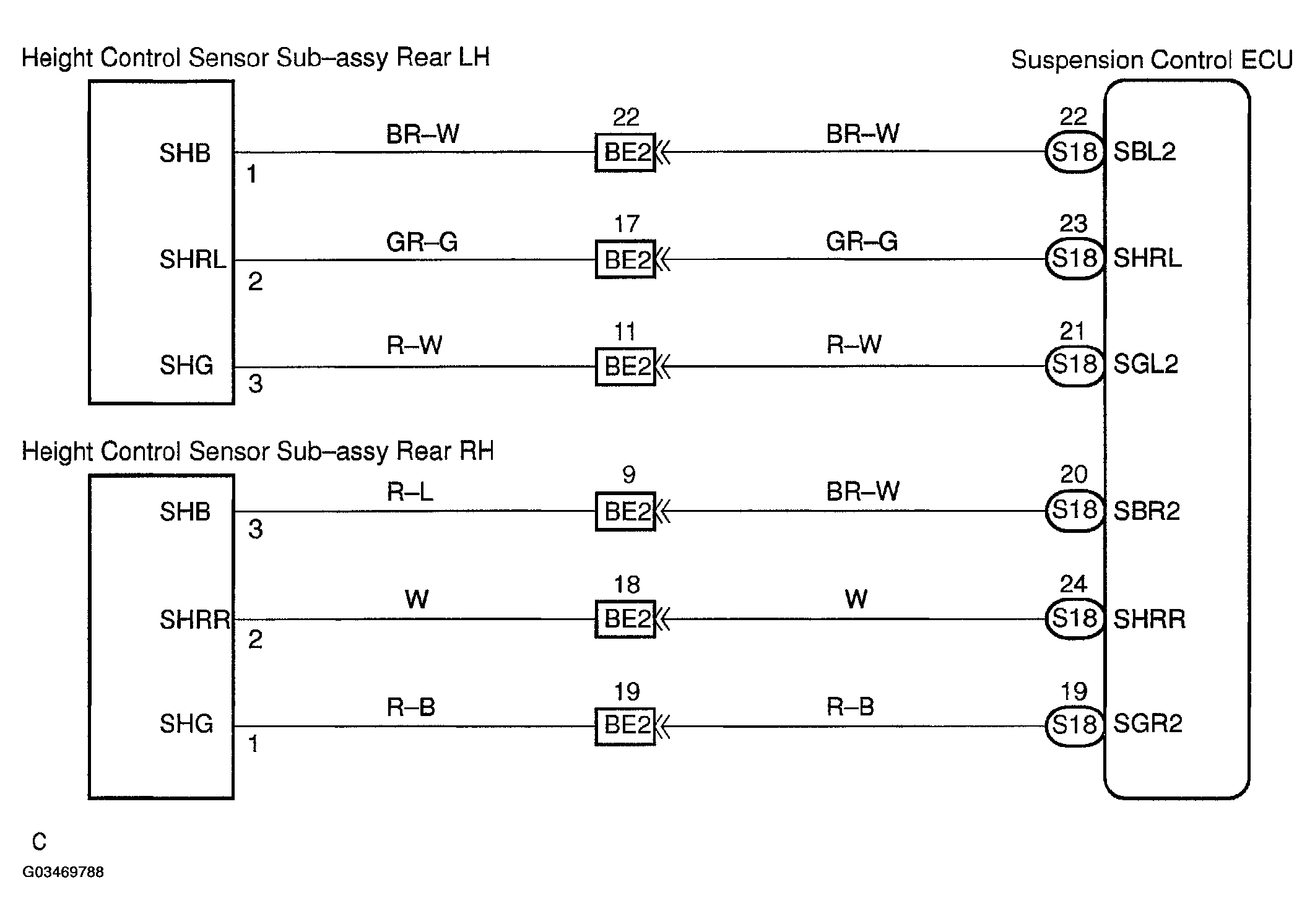

Fig 1: Identifying Left & Right Rear Height Control Sensor Circuit Wiring Diagram
G03469788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
