Inspection Procedure

HINT:

• Proceed to troubleshooting following the flow chart, regardless of whether or not DTC C1713/13 of C1714/14 is displayed.
• If DTC C1761/61 (ECU malfunction) and/or C1774/74 (power source circuit) is displayed, perform the inspection necessary for DTC C1761/61 (See DTC C1761/61 ECU MALFUNCTION ) and/or C1774/74 (See DTC C1774/74 POWER SOURCE CIRCUIT ) first.

  (If DTC C1761/61 and C1774/74 are output at the same time, perform the inspection necessary for DTC C1774/74 first.)

• Start the inspection from step  1 when using the hand-held tester, and start from step  2 when not using the hand-held tester.

1. READ VALUE OF HAND-HELD TESTER
   1. Connect the hand-held tester to DLC3.
   2. Turn the ignition switch ON, and push the hand-held tester main switch ON.
   3. Select the item "RL HEIGHT" or "RR HEIGHT" in the DATA LIST, and read its value displayed on the hand-held tester.
   4. Check the vehicle height value of the height control sensor sub-assy rear with the hand-held tester while pressing the height control switch "UP" and "DOWN".

      Standard:

      Vehicle height value changes.

   1. OK: CHECK AND REPLACE SUSPENSION CONTROL ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
   2. NG: Go to next step
2. CHECK HARNESS AND CONNECTOR (HEIGHT CONTROL SENSOR SUB-ASSY REAR POWER SOURCE)
   1. Disconnect the height control sensor sub-assy rear connector.
      Fig 1: Disconnecting Height Control Sensor Sub-Assy Rear Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Height control sensor sub-assy rear LH:

      Turn the ignition switch ON, and measure voltage between terminal 1 (SHB) and 3 (SHG) of the height control sensor sub-assy rear wire harness side connector.

      • Standard:  4.5 to 5.5 V
   3. Height control sensor sub-assy rear RH:

      Turn the ignition switch ON, and measure voltage between terminal 1 (SHG) and 3 (SHB) of the height control sensor sub-assy rear wire harness side connector.

      • Standard:  4.5 to 5.5 V
   1. OK: Go to step   4
   2. NG: Go To Next Step
3. CHECK HARNESS AND CONNECTOR (HEIGHT CONTROL SENSOR SUB-ASSY REAR - SUSPENSION CONTROL ECU)

   Height control sensor sub-assy rear LH:

   1. Check for open and short circuit in the harness and the connector between terminal 1 (SHB) of the height control sensor sub-assy rear and S18-22 (SBL2) of the suspension control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
   2. Check for open and short circuit in the harness and the connector between terminal 3 (SHG) of the height control sensor sub-assy rear and S18-21 (SGL2) of the suspension control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

   Height control sensor sub-assy rear RH:

   1. Check for open and short circuit in the harness and the connector between terminal 1 (SHG) of the height control sensor sub-assy rear and S18-19 (SGR2) of the suspension control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
   2. Check for open and short circuit in the harness and the connector between terminal 3 (SHB) of the height control sensor sub-assy rear and S18-20 (SBR2) of the suspension control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
   1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   2. OK: Go To Next Step
4. CHECK HARNESS AND CONNECTOR (HEIGHT CONTROL SENSOR SUB-ASSY REAR - SUSPENSION CONTROL ECU)

   Height control sensor sub-assy rear LH:

   1. Check for open and short circuit in the harness and the connector between terminal 2 (SHRL) of the height control sensor sub-assy rear and S18-23 (SHRL) of the suspension control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).

   Height control sensor sub-assy rear RH:

   1. Check for open and short circuit in the harness and the connector between terminal 2 (SHRR) of the height control sensor sub-assy rear and S18-24 (SHRR) of the suspension control ECU (See ELECTRONIC CIRCUIT INSPECTION PROCEDURE ).
   1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
   2. OK: Go To Next Step
5. INSPECT HEIGHT CONTROL SENSOR SUB-ASSY REAR
   1. Remove the height control sensor sub-assy rear LH or RH.

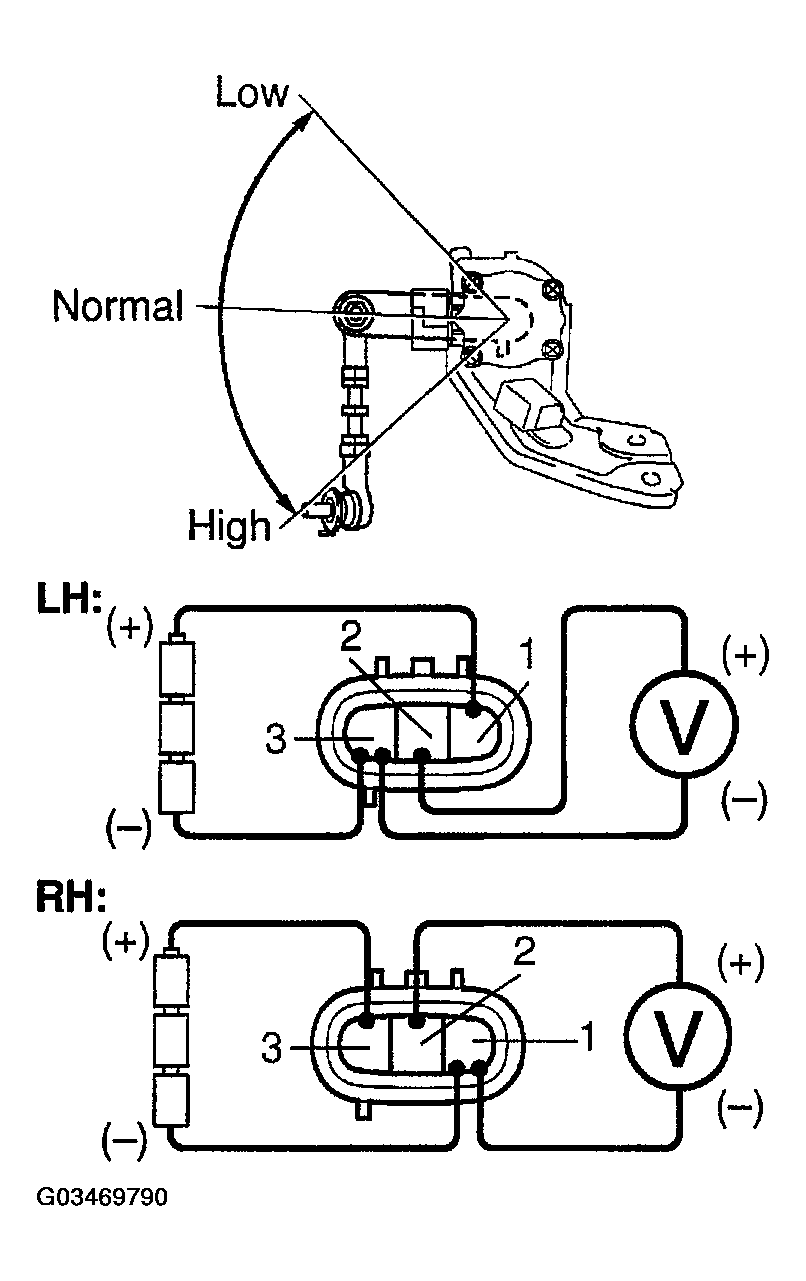

      Fig 2: Removing Height Control Sensor Sub-Assy Rear LH Or RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Connect 3 dry batteries of 1.5 V in series.
   3. Height control sensor sub-assy rear LH:

      Connect terminal 1 (SHB) to the batteries' positive (+) terminal, and terminal 3 (SHG) to the batteries' negative (-) terminal, then apply approximately 4.5 V between terminal 2 (SHRL) and 3 (SHG) in the following conditions.

      Standard:

      STANDARD VOLTAGE



      Position	Voltage
      High (0° to 45°)	Approx. 2.53 to 4.33 V
      Normal (0°)	Approx. 2.53 V
      Low (0° to -45°)	Approx. 0.81 to 2.53 V

      Result:

      RESULT OF VOLTAGE



      OK	A
      NG	B

   4. Height control sensor sub-assy rear RH:

      Connect terminal 3 (SHB) to the batteries' positive (+) terminal, and terminal 1 (SHG) to the batteries' negative (-) terminal, then apply approximately 4.5 V between terminal 1 (SHG) and 2 (SHRR) in the following conditions.

      Standard:

      STANDARD VOLTAGE



      Position	Voltage
      High (0° to 45°)	Approx. 2.53 to 4.33 V
      Normal (0°)	Approx. 2.53 V
      Low (0° to -45°)	Approx. 0.81 to 2.53 V

      Result:

      RESULT OF VOLTAGE



      OK	A
      NG	C

   1. B: REPLACE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
   2. C: REPLACE HEIGHT CONTROL SENSOR SUB-ASSY REAR RH
   3. A: CHECK AND REPLACE SUSPENSION CONTROL ECU (See  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
