The Ambient Temperature Does Not Display: Wiring Diagram

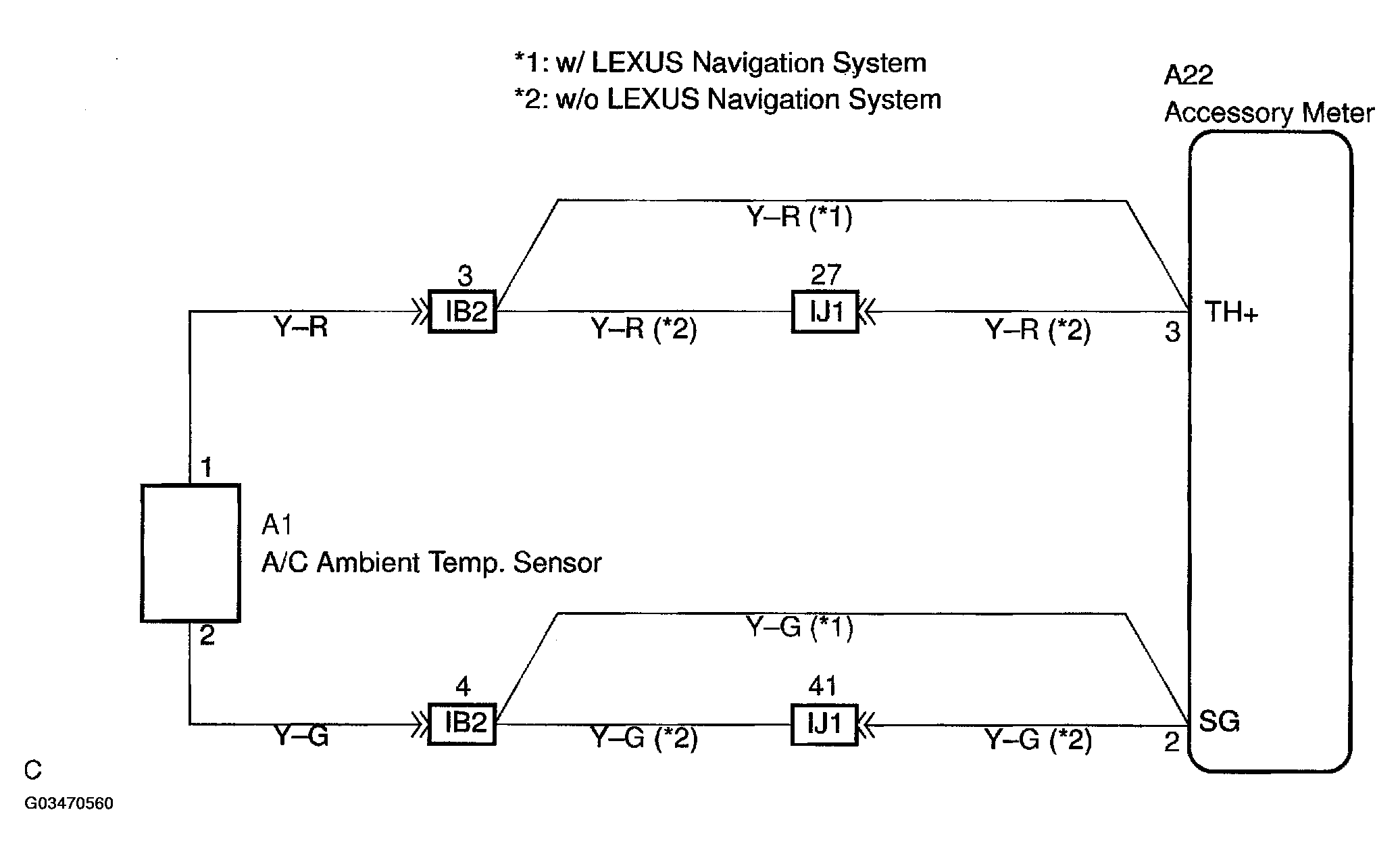

Fig 1: Ambient Temperature Does Not Display Wiring Diagram

G03470560

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
