Inspection Procedure

1. Remove the combination meter assy.
2. Passenger sits on the seat.
3. Check the continuity between the terminal C9-13 of combination meter assy connector and body ground.

Standard:

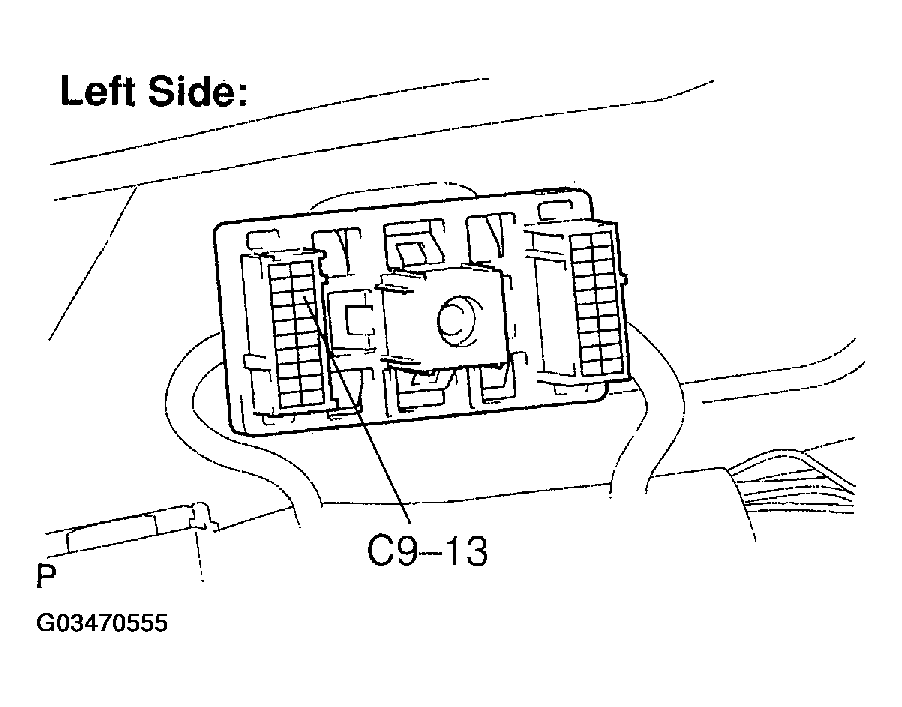

Fig 1: Checking Continuity Between Terminal C9-13 And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: CHECK AND REPLACE COMBINATION METER ASSY
2. NG: GO TO NEXT STEP

1. Check resistance.
   1. Passenger sits on the seat.
   2. Check resistance between terminals 2 and 3 of front seat inner belt assy.

Standard:

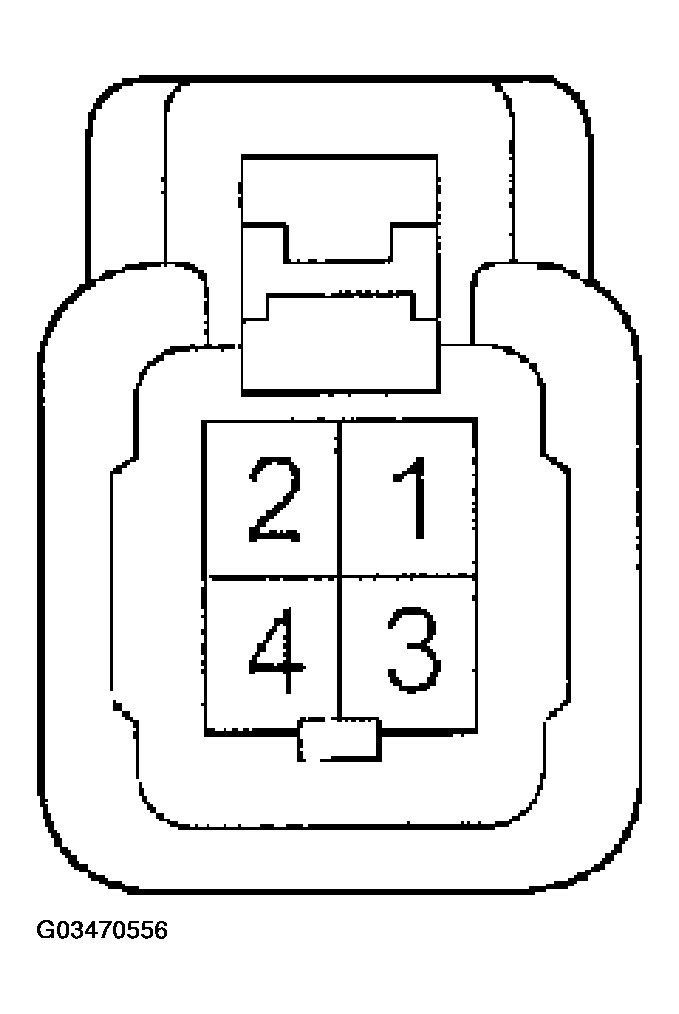

Fig 2: Checking Resistance Between Terminals 2 And 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE FRONT SEAT INNER BELT ASSY
2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
