Inspection Procedure

1. Remove the combination meter assy.
2. Driver sits on the seat.
3. Check the continuity between the terminal C11-17 of combination meter connector and body ground.

Standard:

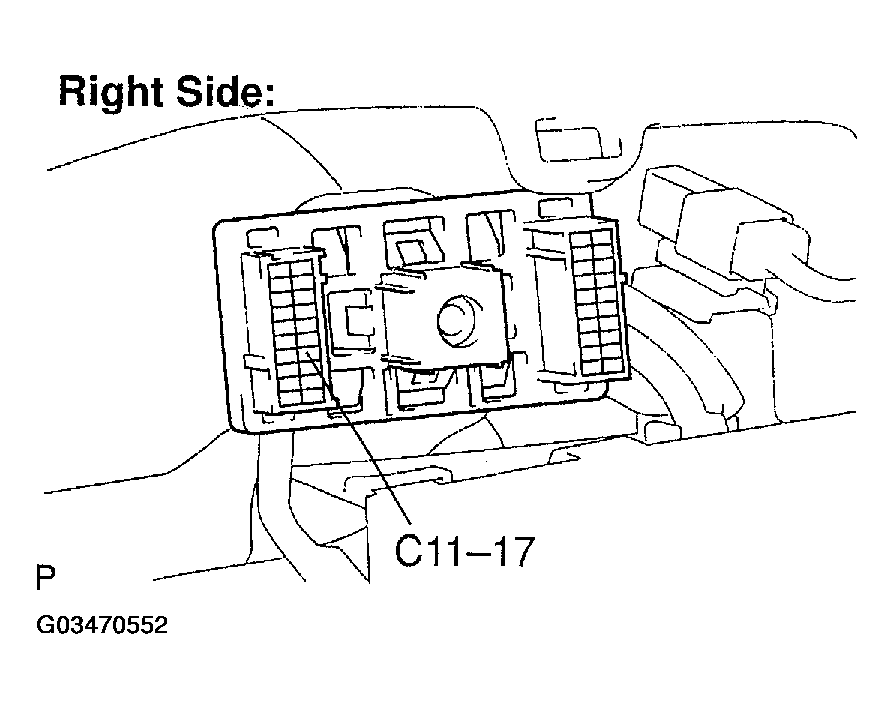

Fig 1: Checking Continuity Between Terminal C11-17 And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: CHECK AND REPLACE COMBINATION METER ASSY
2. NG: GO TO NEXT STEP

1. Check resistance.
   1. Driver sits on the seat.
   2. Check resistance between terminals 3 and 6 of front seat inner belt assy.

Standard:

Fig 2: Checking Resistance Between Terminals 3 And 6

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG: REPLACE FRONT SEAT INNER BELT ASSY
2. OK: REPAIR OR REPLACE HARNESS OR CONNECTOR
