Inspection Procedure
- CHECK COMBINATION METER ASSY
(REFERENCE) INSPECTION USING OSCILLOSCOPE
- Check the input signal waveform.
- Remove the combination meter assy.

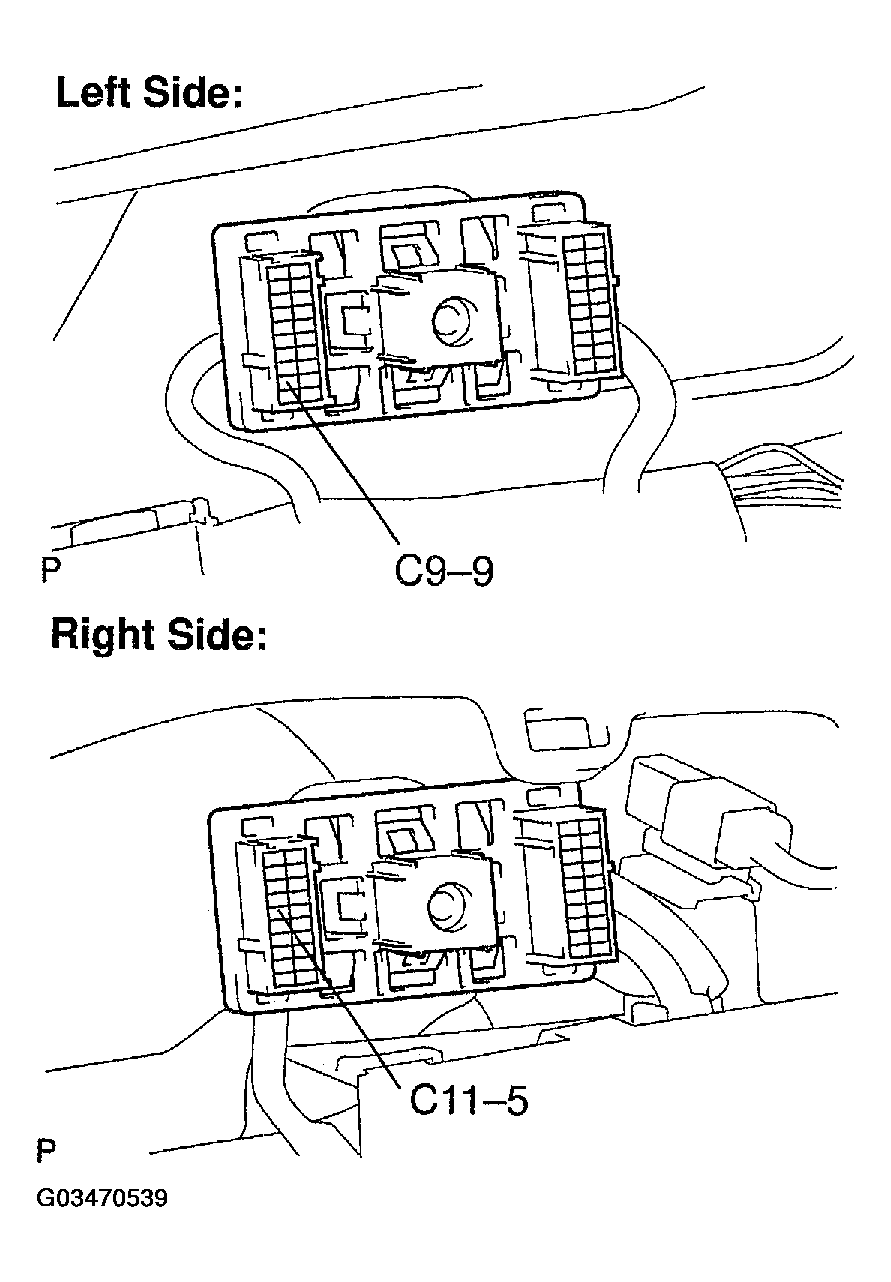

- Connect the oscilloscope to the terminals C11-5 and C9-9 of combination meter connector.
- Start engine.
- Check the signal waveform.
ITEM REFERENCE CHARTItem Contents Tool setting 5V/DIV, 100 ms/ DV Vehicle condition Engine idle speed WAVEFORM CONDITIONA NG B OK
- B: CHECK AND REPLACE COMBINATION METER ASSY
- A: GO TO NEXT STEP
- Check the input signal waveform.
- CHECK HARNESS AND CONNECTOR (BETWEEN ECM AND COMBINATION METER)
- Remove the combination meter.
- Check the continuity between terminals 14 (THWO) of engine ECU and C11-5 of combination meter connector (See
TERMINALS OF ECU ).
Standard: There is continuity.
- NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
- OK: CHECK AND REPLACE ECM
