Malfunction In Fuel Receiver Gauge: Wiring Diagram

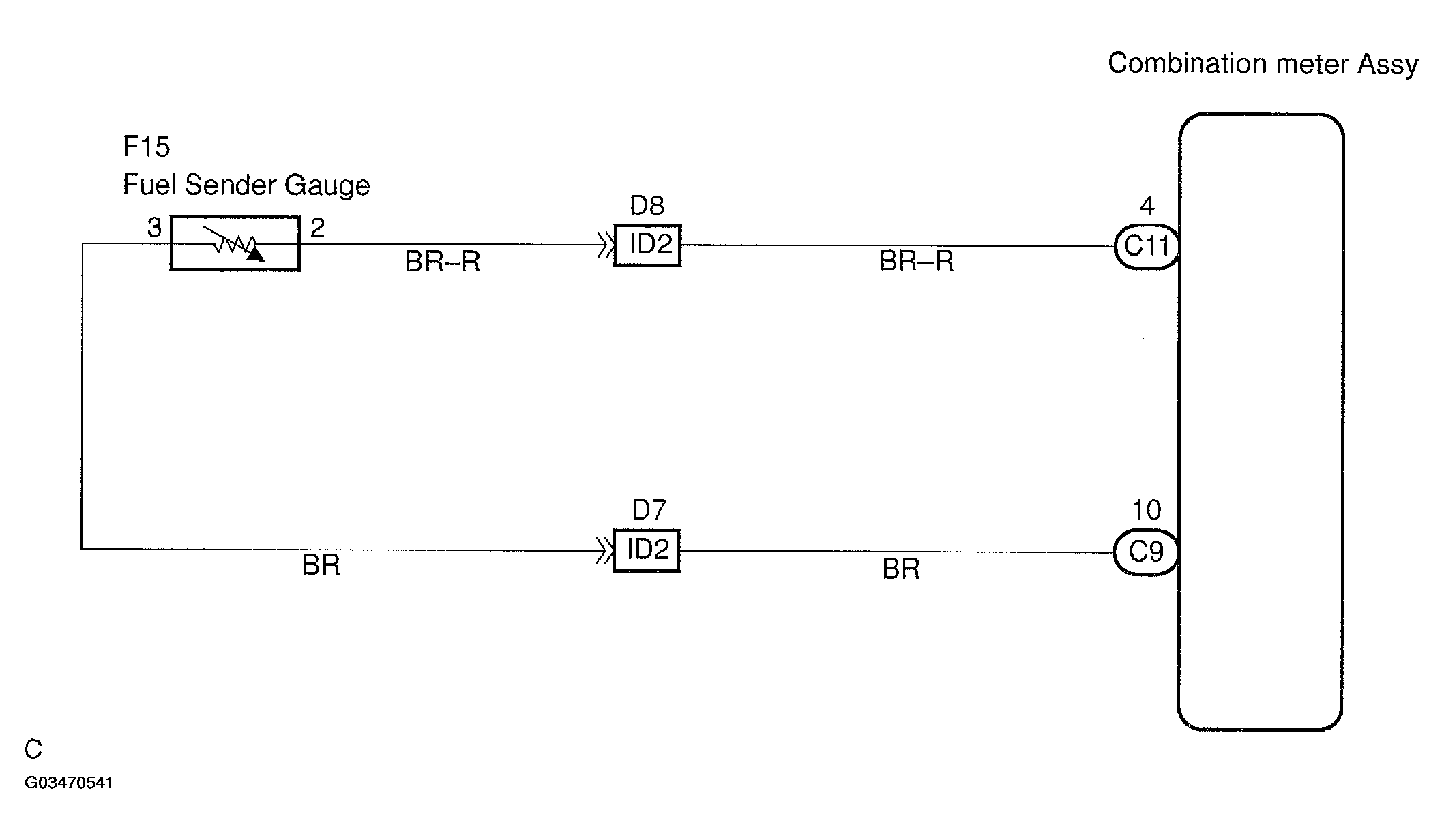

Fig 1: Malfunction In Fuel Receiver Gauge Wiring Diagram

G03470541

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
