Combination Meter - Diagnosis: Location

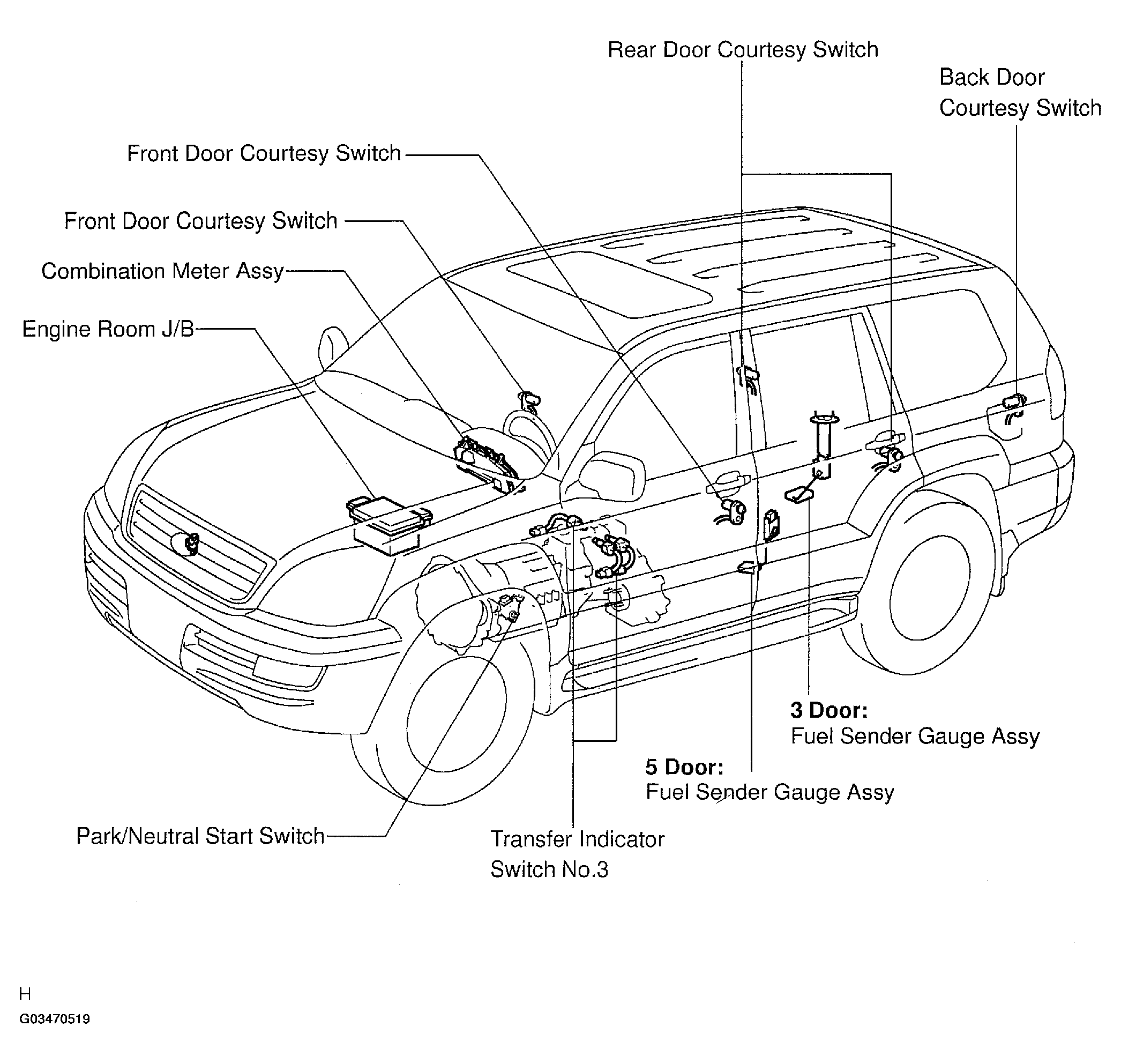

Fig 1: Locating Combination Meter Component (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

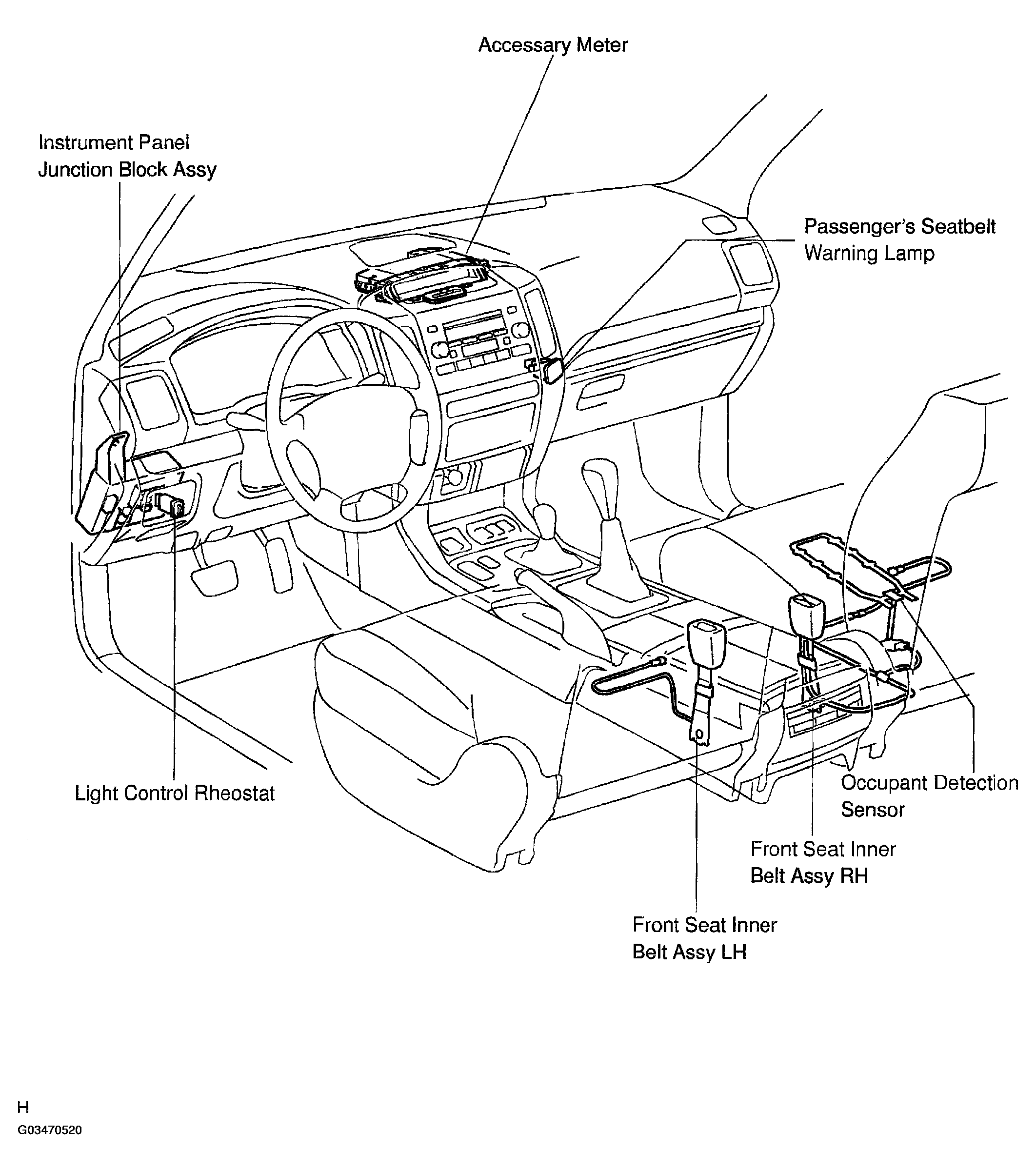

Fig 2: Locating Combination Meter Component (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

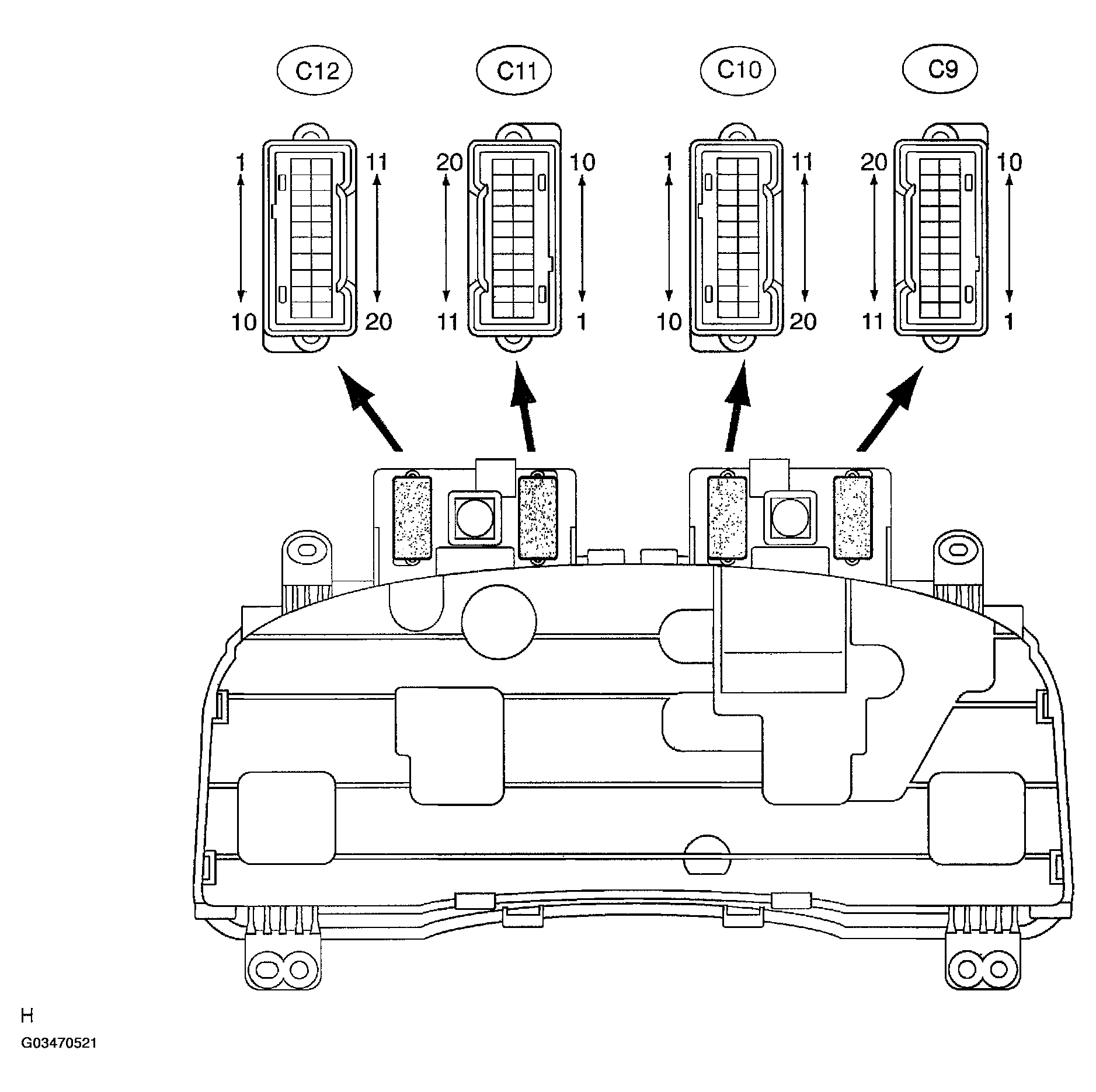

Fig 3: Locating Combination Meter Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

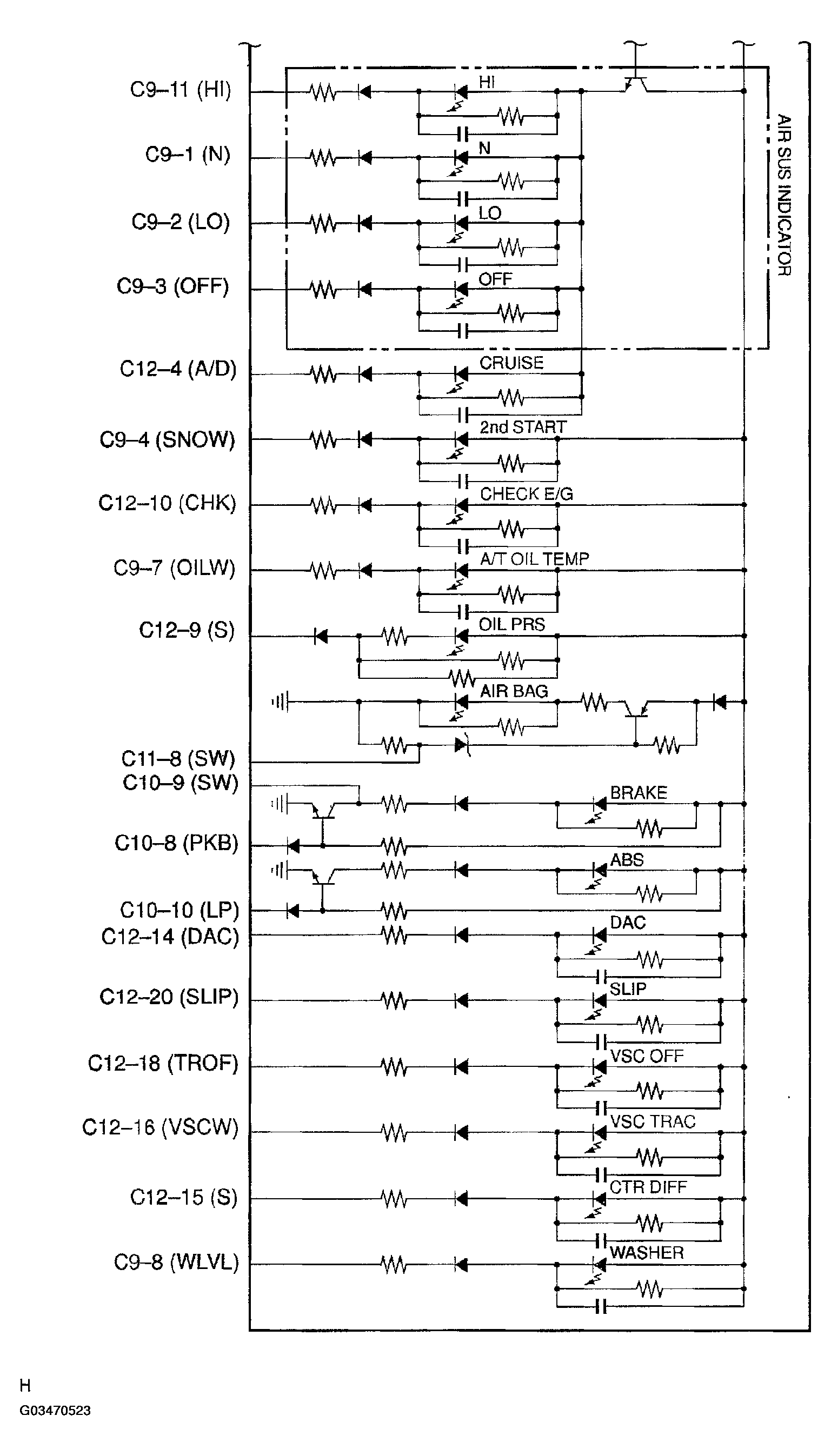

Fig 4: Combination Meter - Wiring Diagram (1 Of 2)

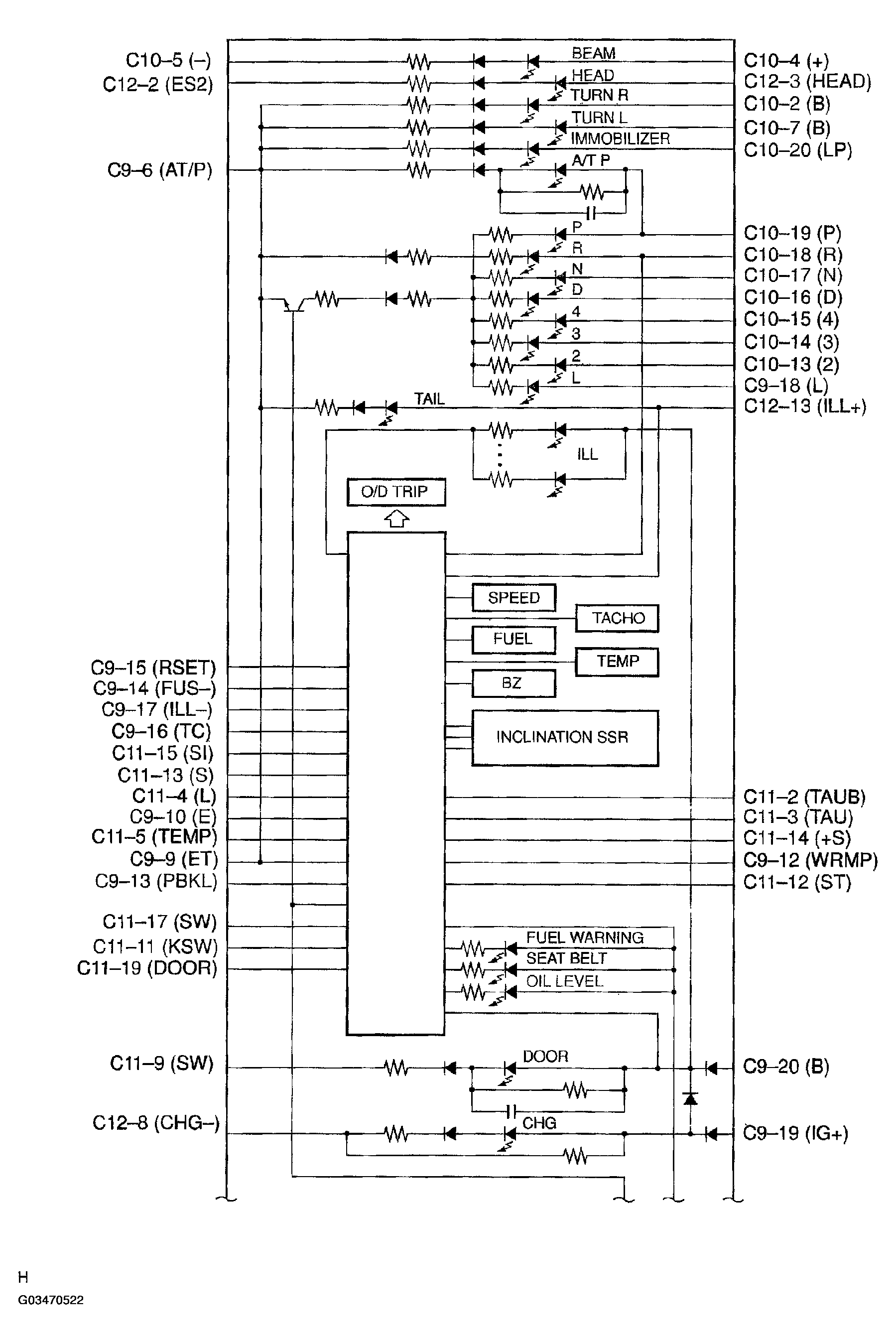

Fig 5: Combination Meter - Wiring Diagram (2 Of 2)

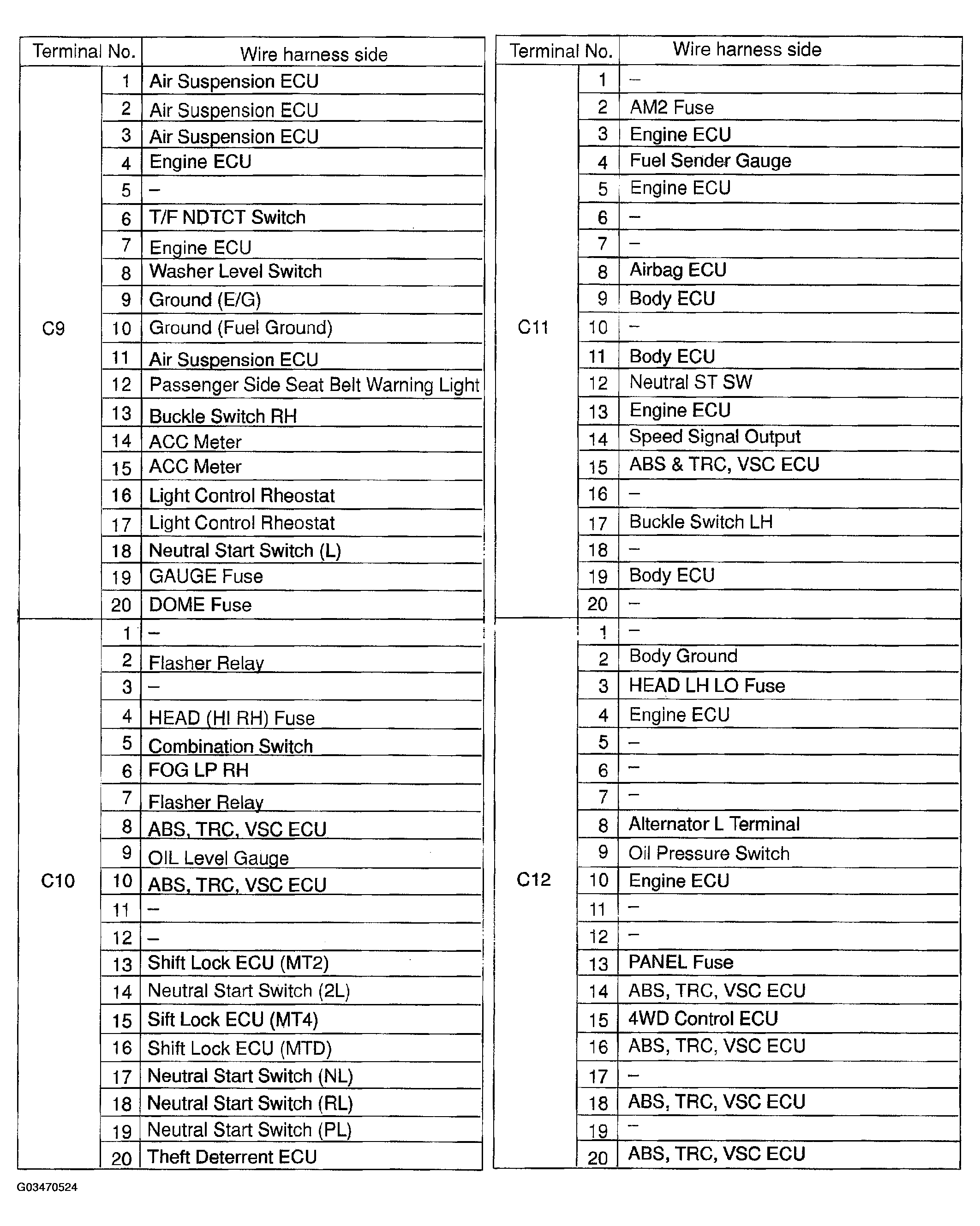

Fig 6: Combination Meter - Wire Harness Side Chart
