Disassembly & Reassembly
- Remove the combination meter from the instrument panel. See INSTRUMENT PANEL .

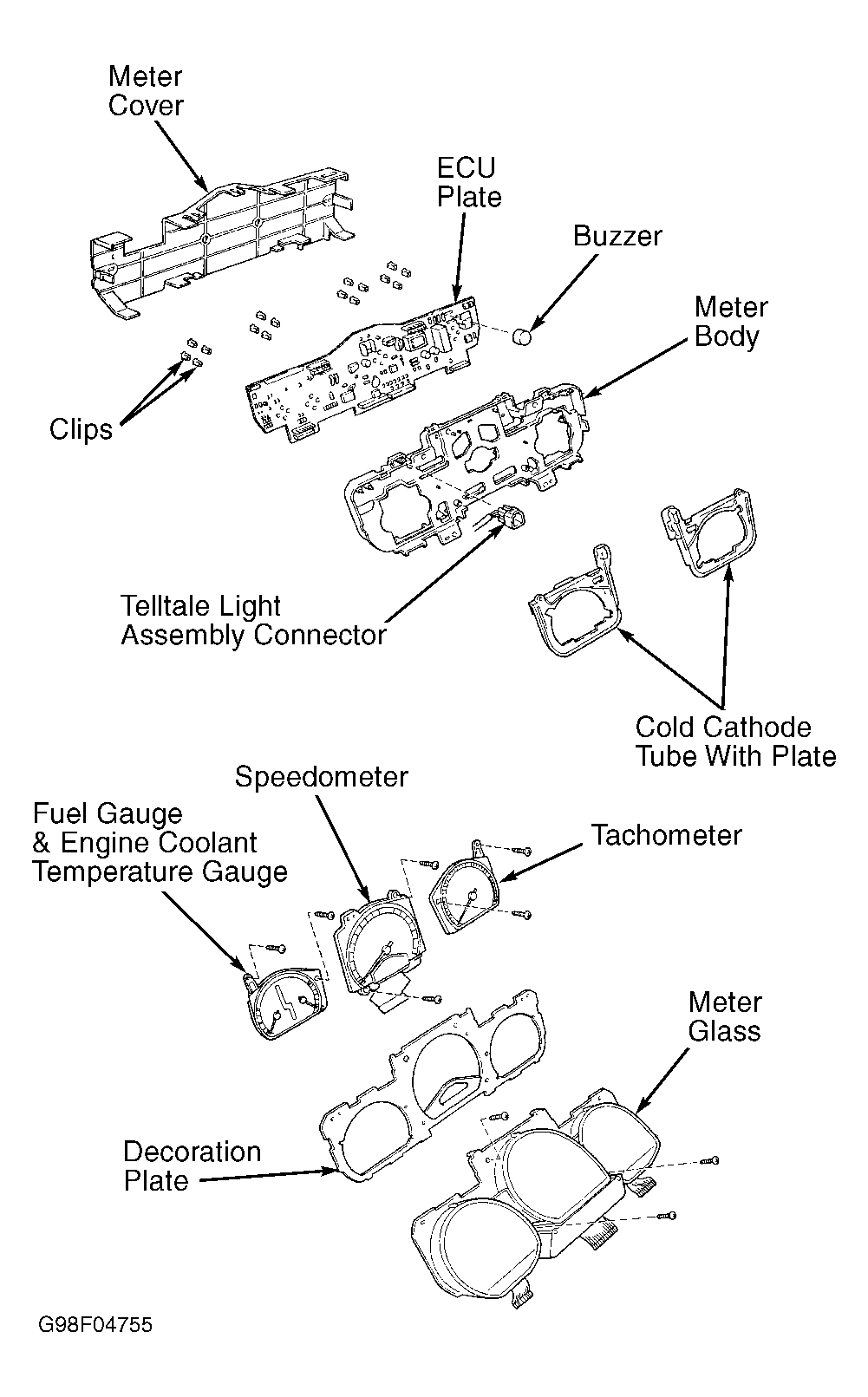

- Disconnect the telltale light assembly coil connector. See Fig 1.
- Remove the meter cover by disengaging a claw and removing the 4 screws.
- Remove the ECU plate by disconnecting the 4 flat circuit plates and removing the 16 clips.
- Remove the buzzer.
- Remove the meter glass by removing the 3 screws.
- Remove the decoration plate.
- Remove the speedometer by removing the 2 screws.
- Remove the tachometer, fuel receiver gauge and engine coolant temperature receiver gauge by removing the 4 screws.
- Remove the cold cathode tube with plate.
