Seat Belt Warning Lamp For Front Passenger's Seat Does Not Flash: Wiring Diagram

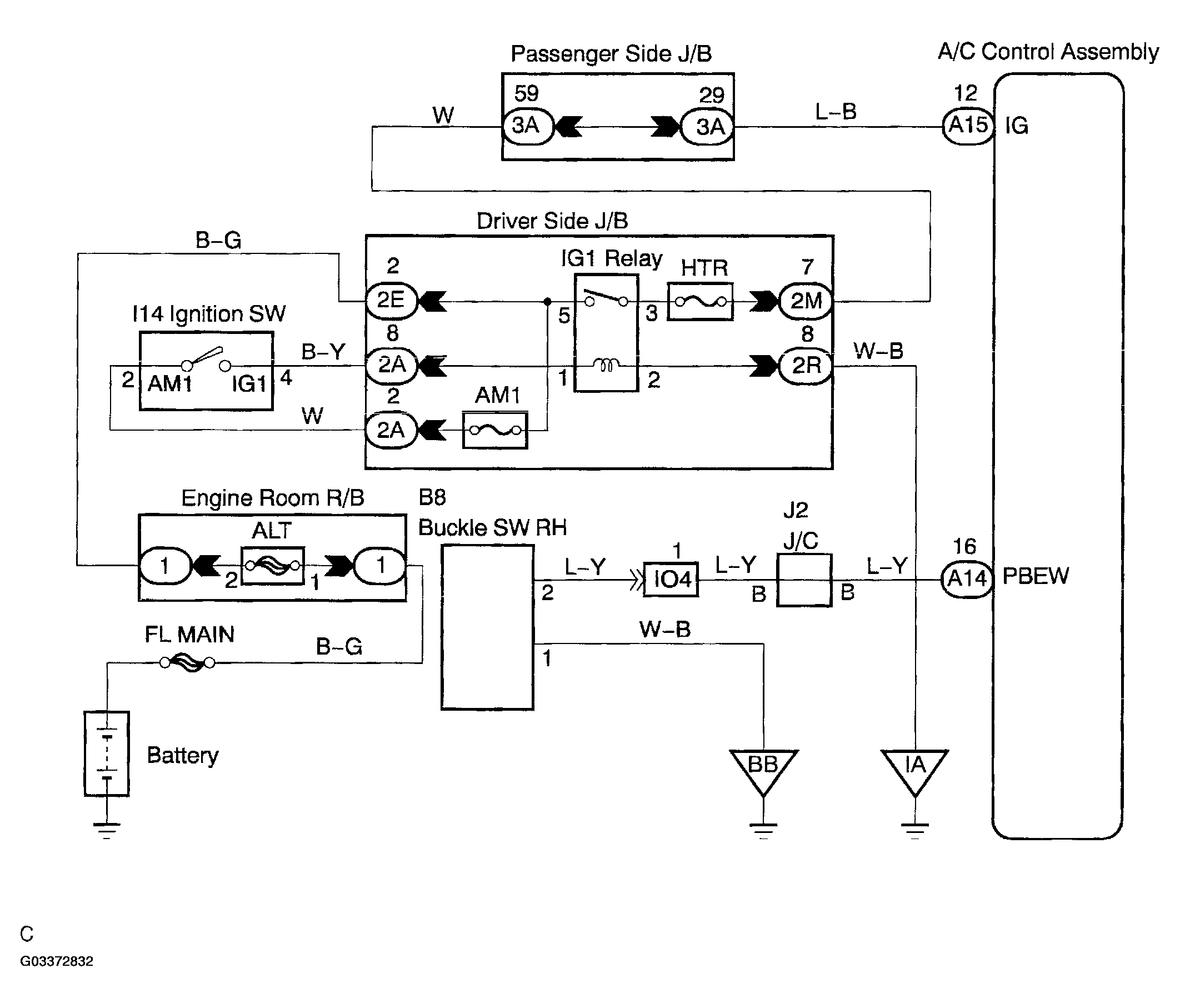

Fig 1: Seat Belt Warning Lamp For Front Passenger'S Seat Does Not Flash - Wiring Diagram
G03372832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
