Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

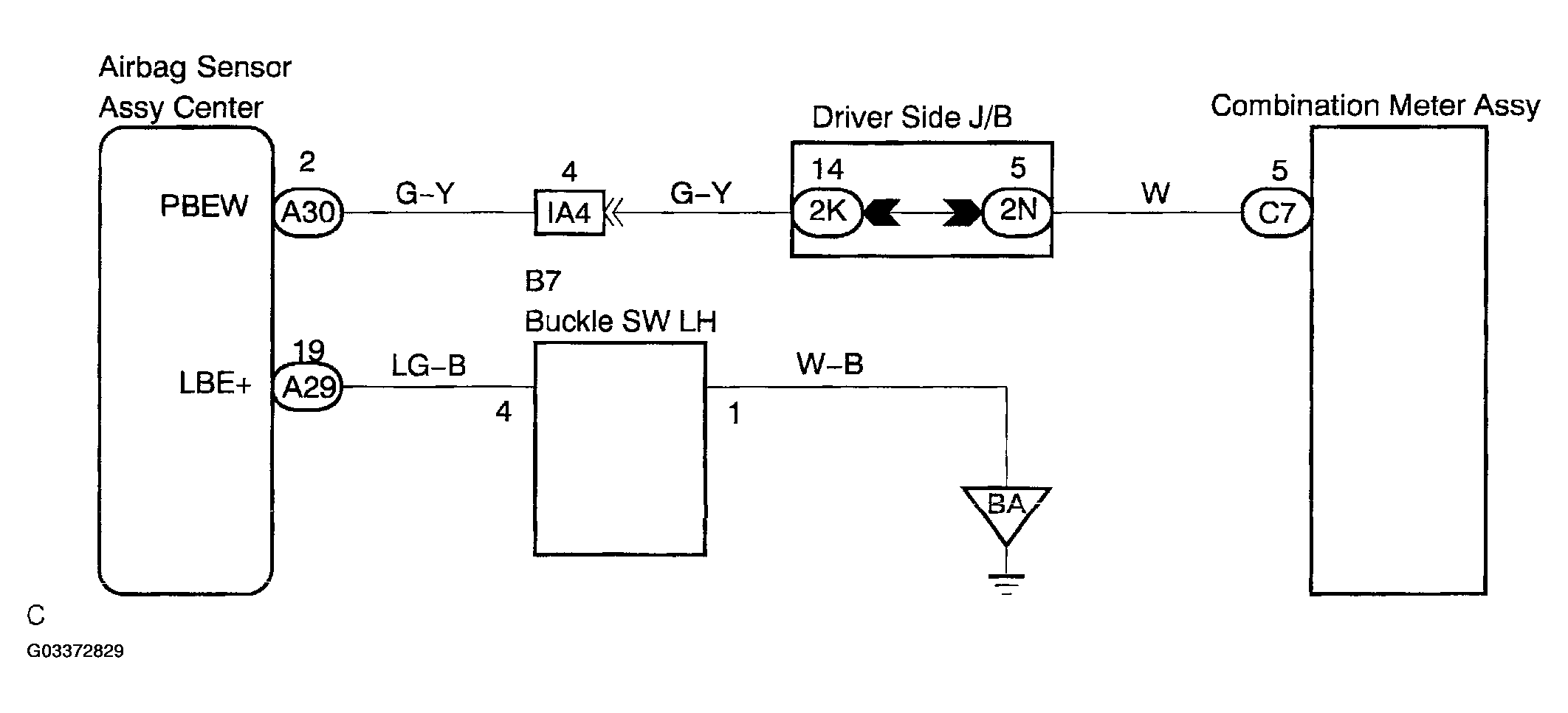

Fig 1: Seat Belt Warning Lamp For Driver's Seat Does Not Operate - Wiring Diagram
G03372829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
