Operating Light Control Rheostat Does Not Change Light Brightness: Wiring Diagram

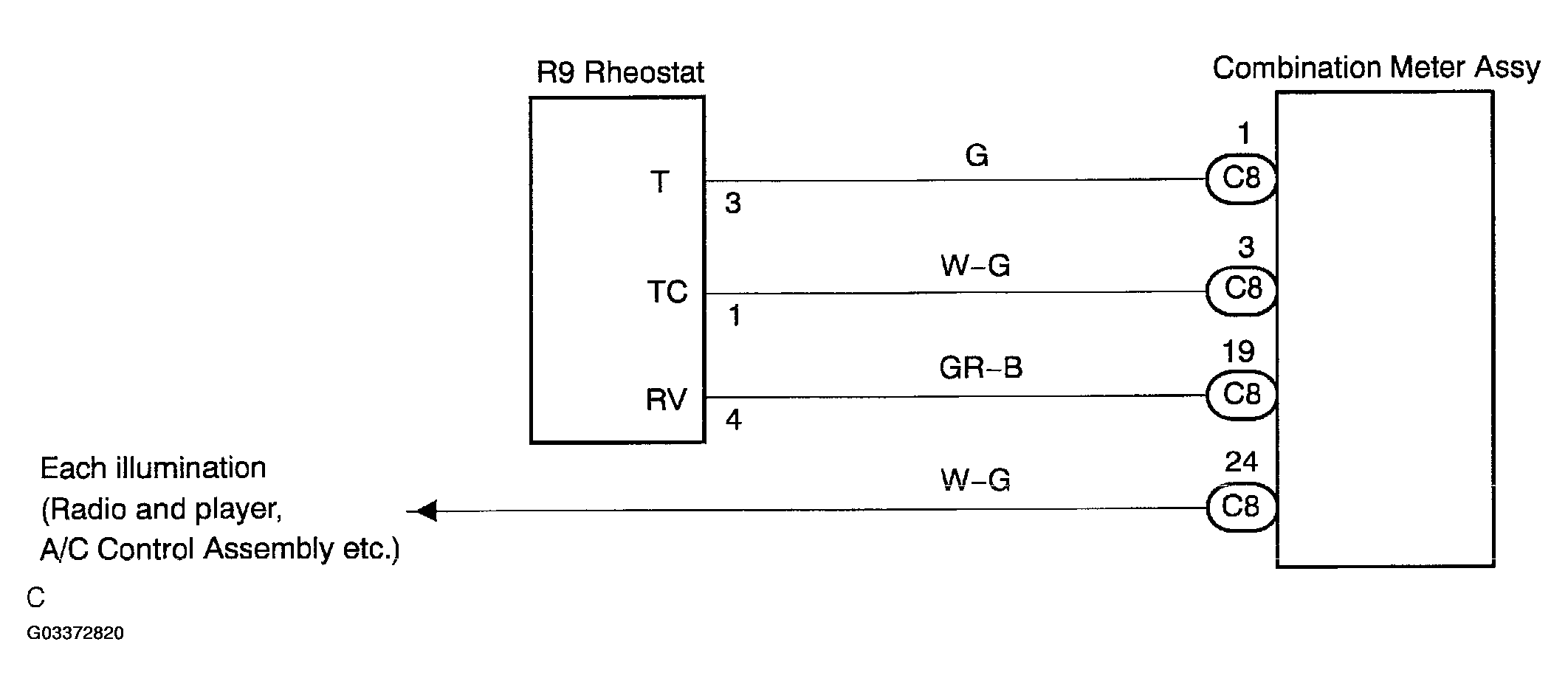

Fig 1: Rheostat - Wiring Diagram

G03372820

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
