Multi-Information Display Screen Does Not Change When Steering Pad Switch Is Operated: Wiring Diagram

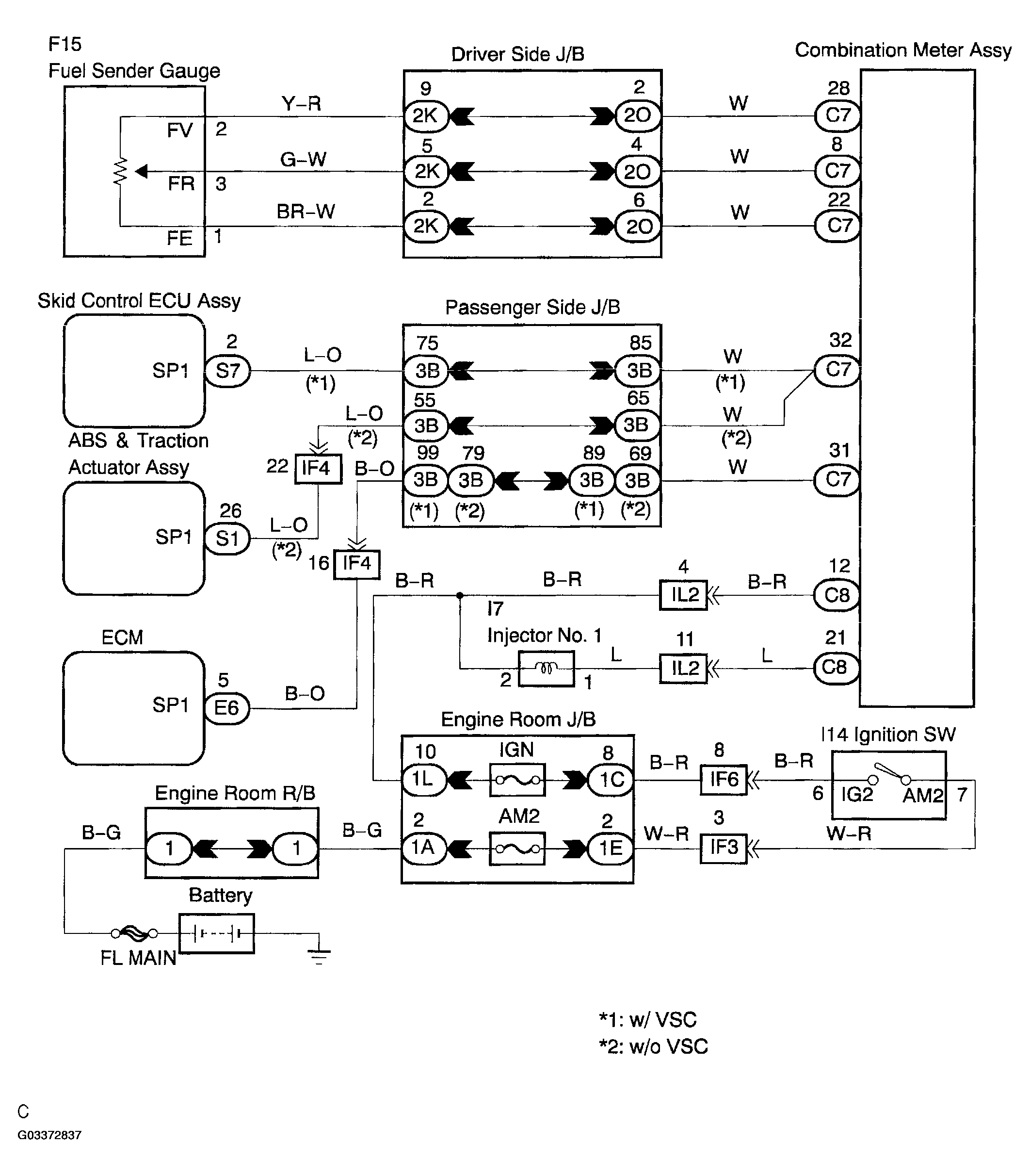

Fig 1: Multi-Information Display Screen Does Not Change When Steering Pad Switch Is Operated - Wiring Diagram
G03372837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
