Malfunction In Water Temperature Receiver Gauge: Wiring Diagram

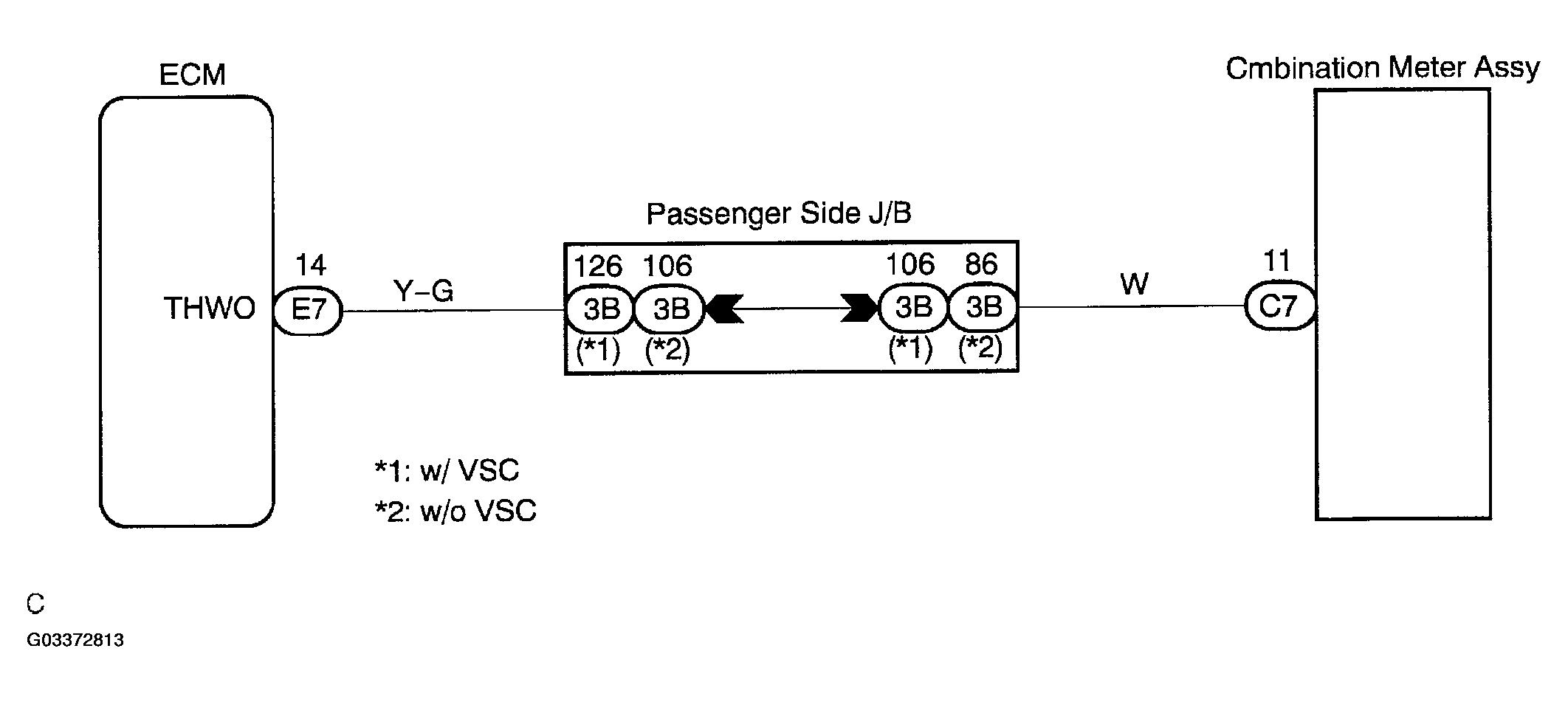

Fig 1: Water Temperature Receiver Gauge - Wiring Diagram

G03372813

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
