Malfunction In Tachometer: Wiring Diagram

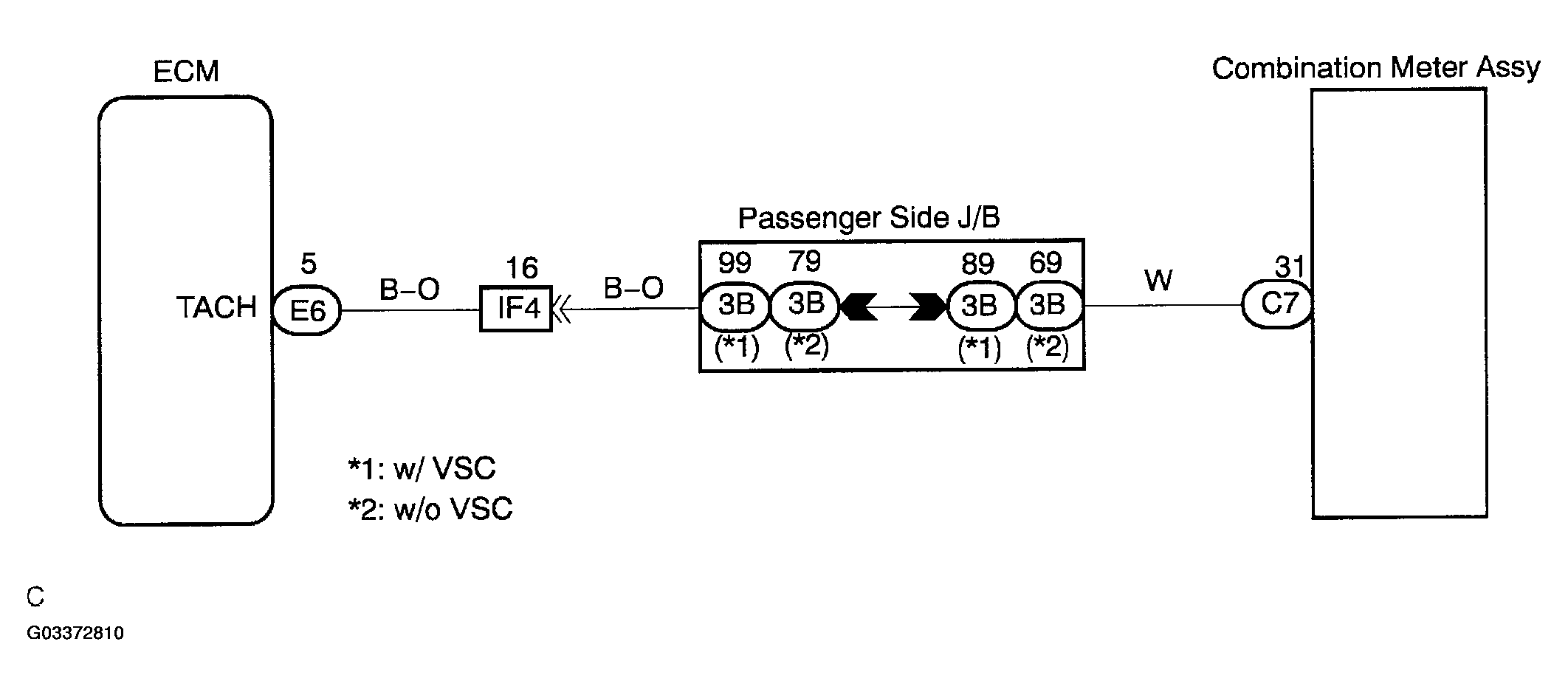

Fig 1: Tachometer - Wiring Diagram

G03372810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
