Malfunction In Speedometer: Wiring Diagram

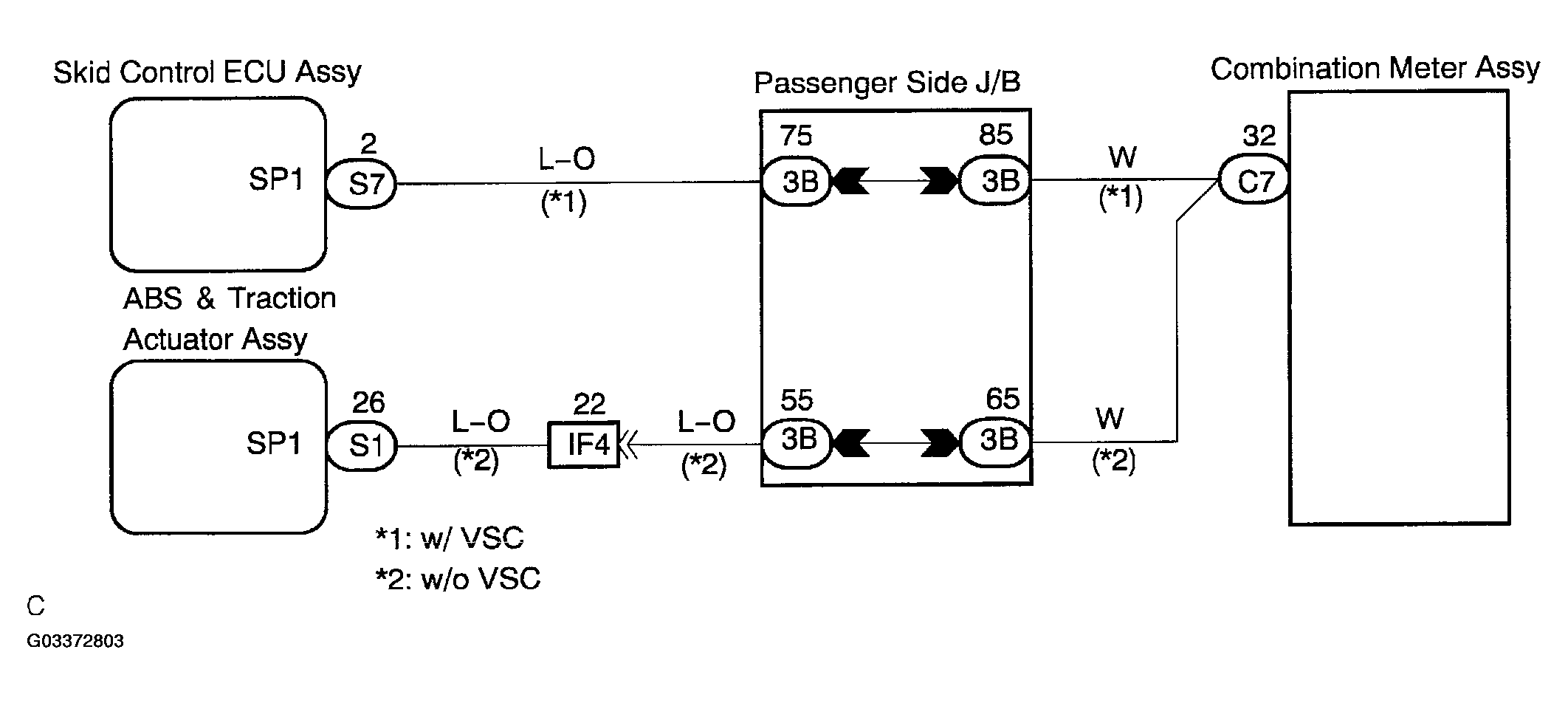

Fig 1: Speedometer - Wiring Diagram

G03372803

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
