Malfunction In Fuel Receiver Gauge: Wiring Diagram

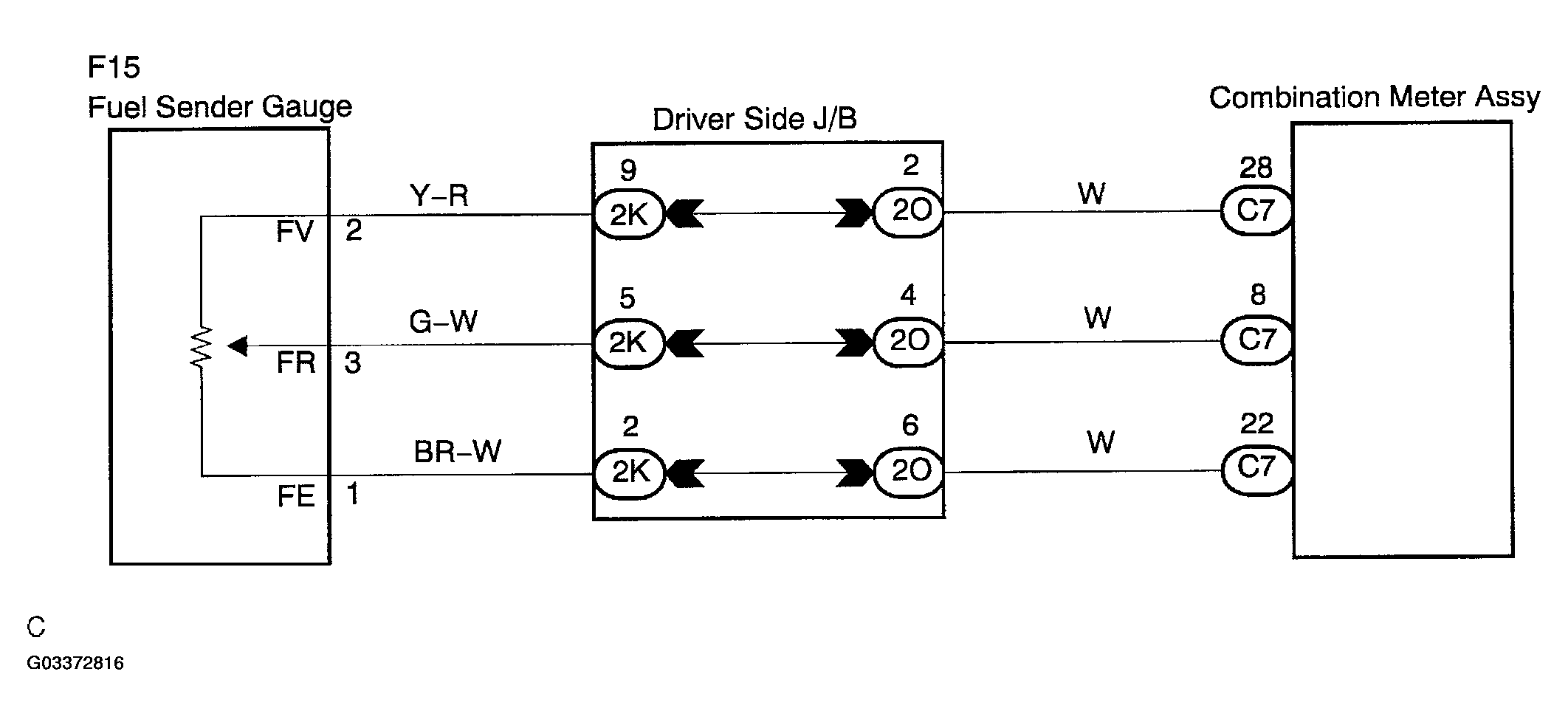

Fig 1: Fuel Receiver Gauge - Wiring Diagram

G03372816

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
