Malfunction In Clock Display: Wiring Diagram

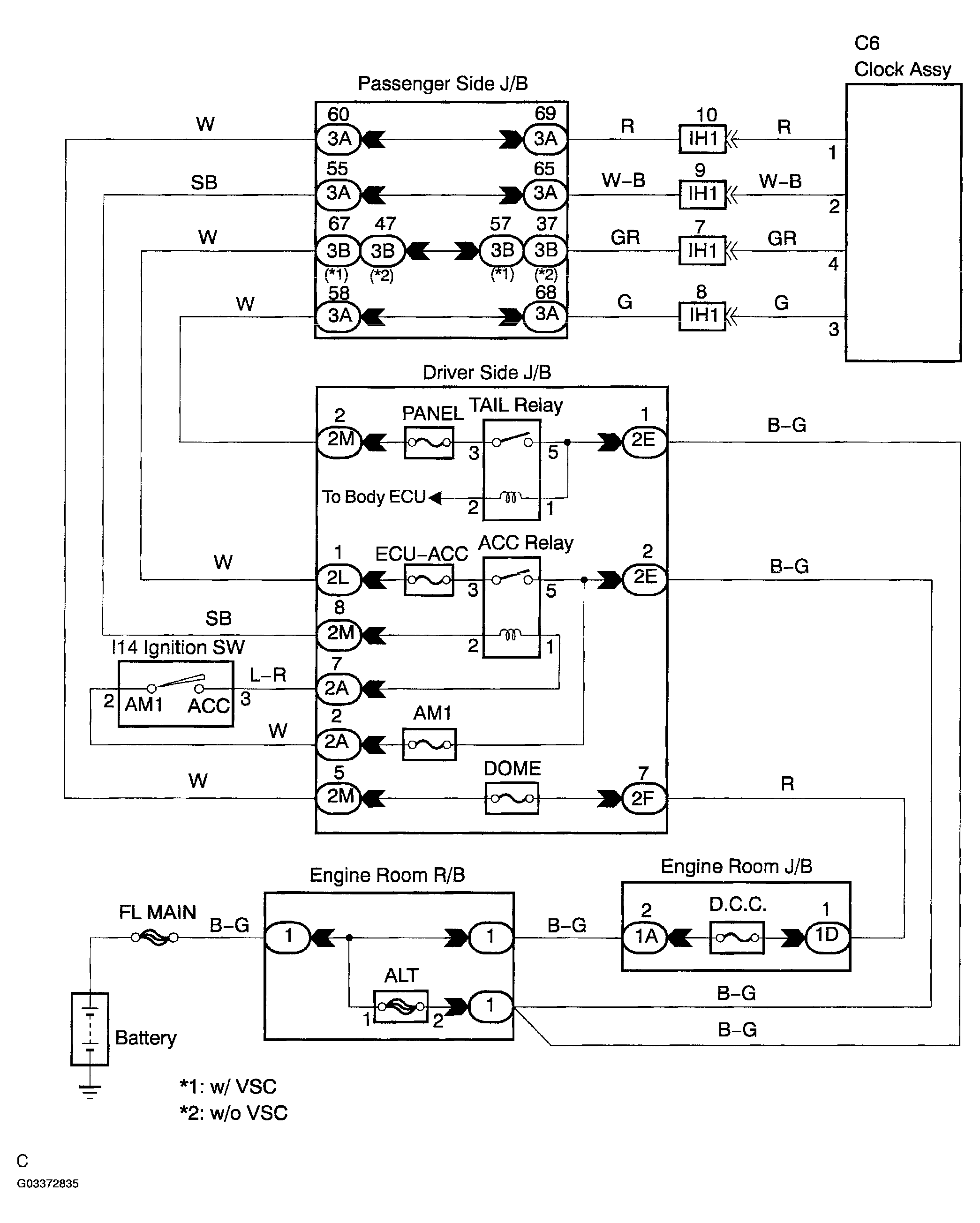

Fig 1: Clock Display - Wiring Diagram

G03372835

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
