Malfunction In Water Temperature Receiver Gauge: Wiring Diagram

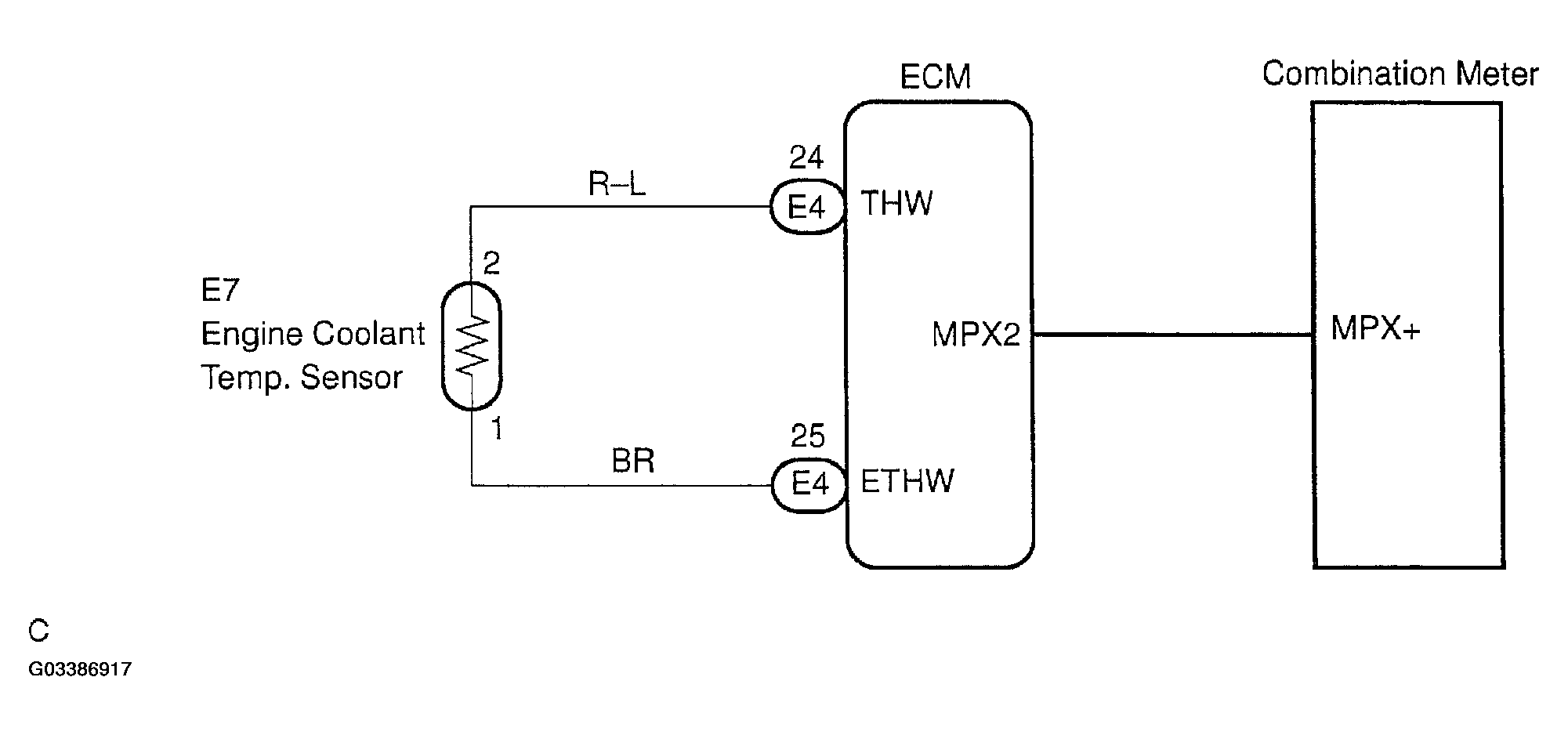

Fig 1: Malfunction In Water Temperature Receiver Gauge Wiring Diagram

G03386917

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
