DTC C1256/56: Accumulator Low Pressure: Wiring Diagram

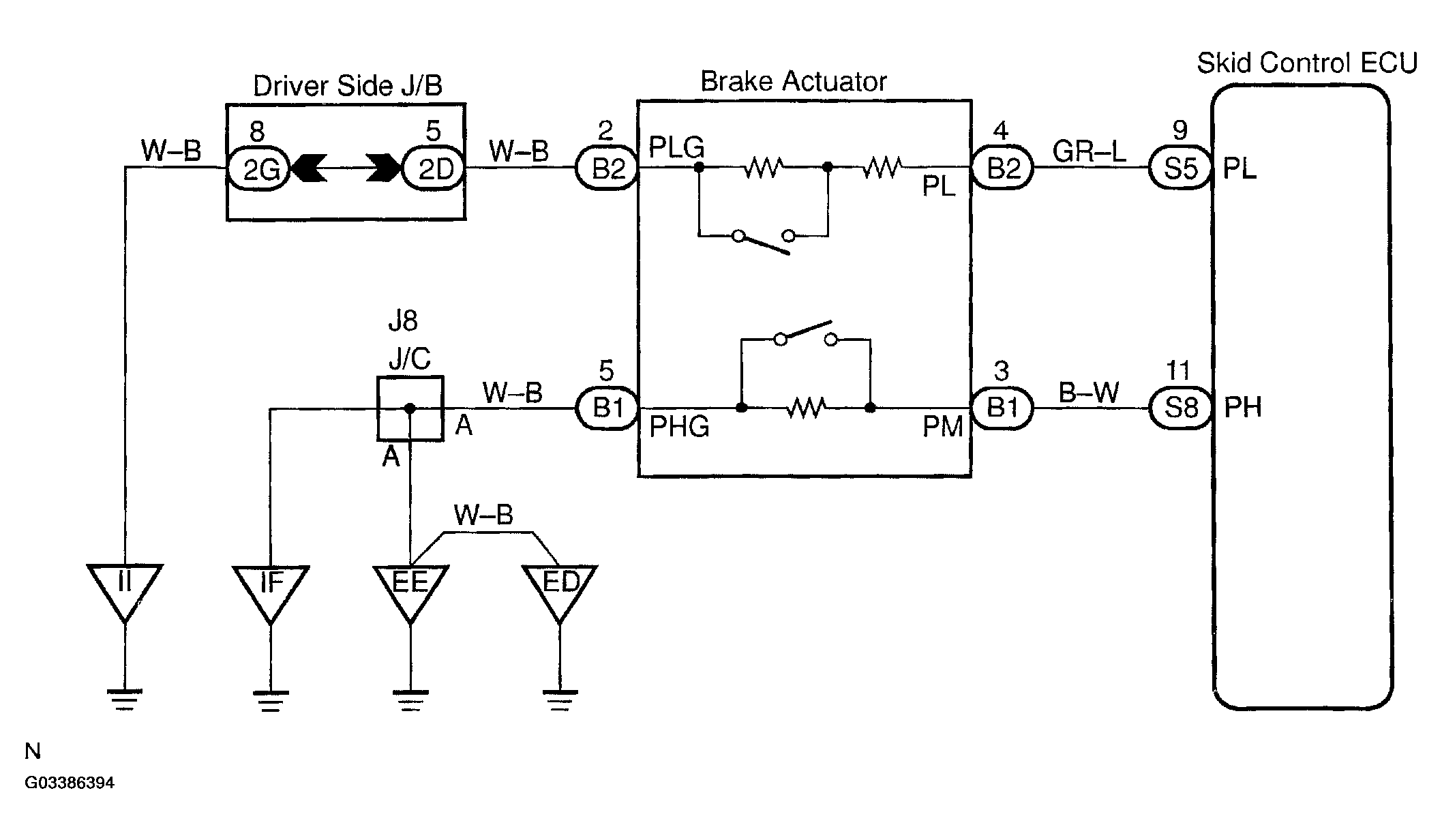

Fig 1: Brake Actuator Wiring Diagram

G03386394

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
