DTC C1251/51: Abs Pump Motor Lock, DTC C1252/52: Brake Booster Pump Motor On Time Abnormally Long, DTC C1253/53: Brake Booster Pump Motor Circuit: Wiring Diagram

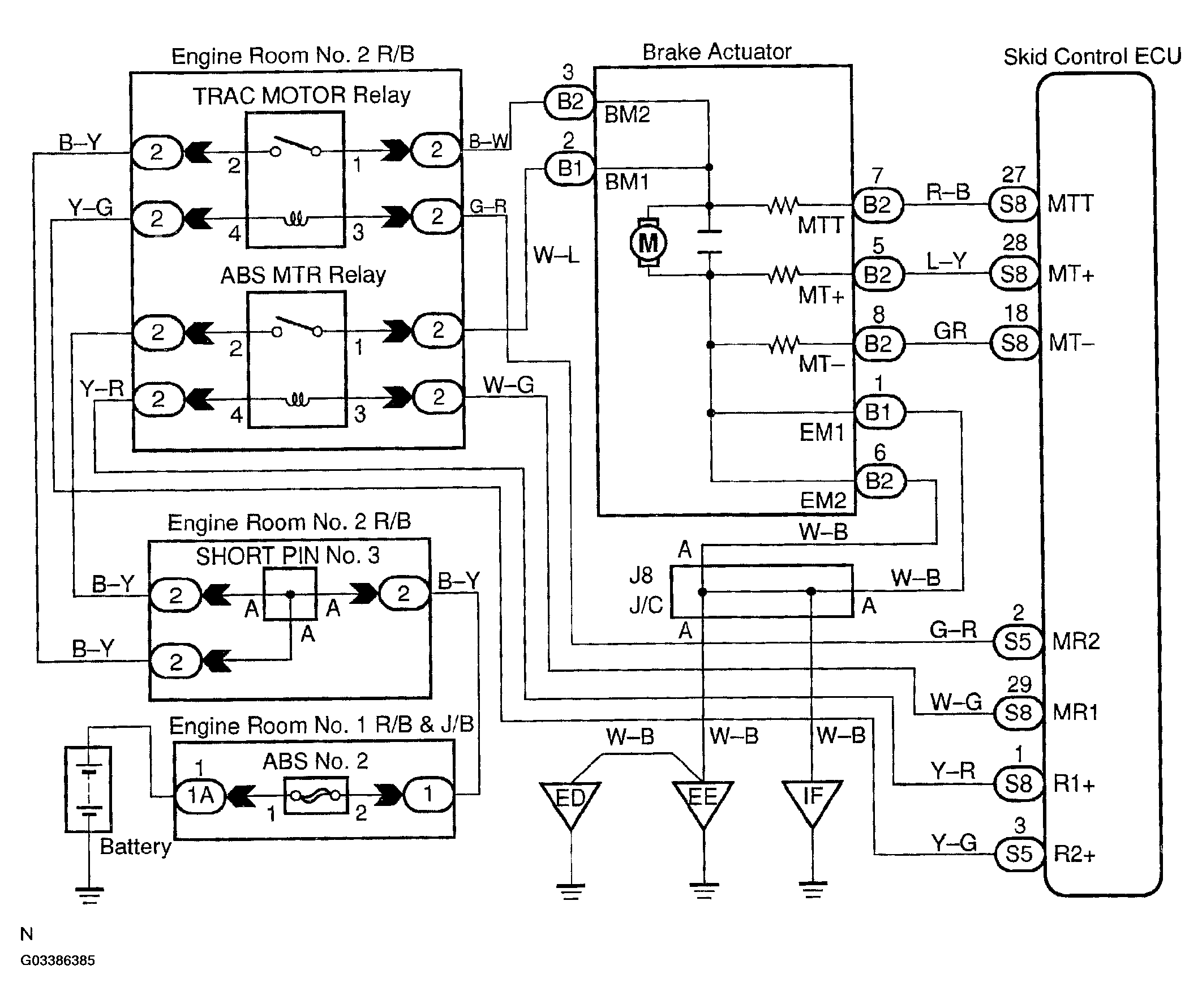

Fig 1: ABS Pump Motor Lock Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
