DTC C1233/33: Yaw Rate Sensor Circuit, DTC C1234/34: Malfunction In Yaw Rate Sensor: Wiring Diagram

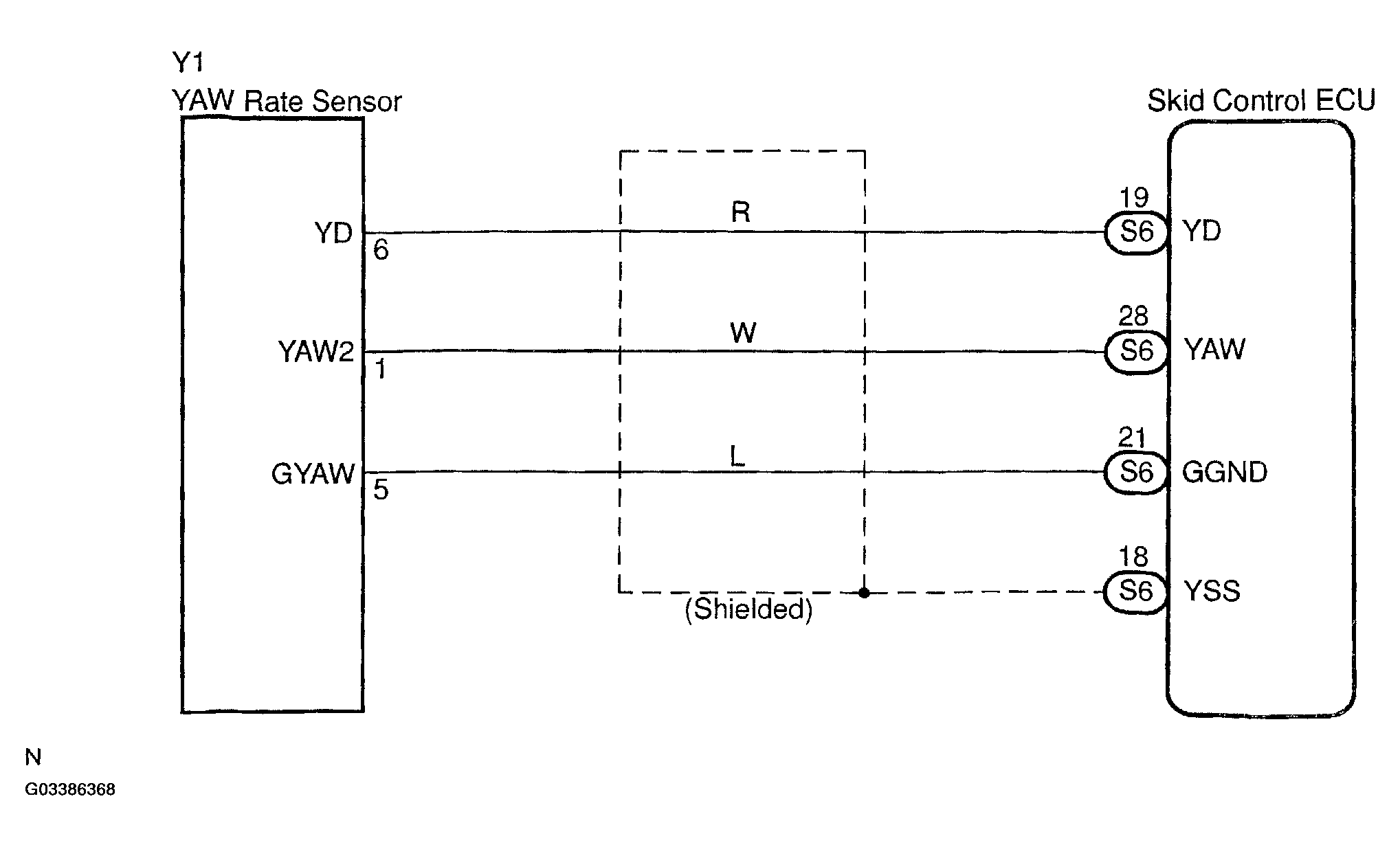

Fig 1: Yaw Rate Sensor Wiring Diagram

G03386368

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
