DTC C1203/53: ECM Communication Circuit Malfunction: Wiring Diagram

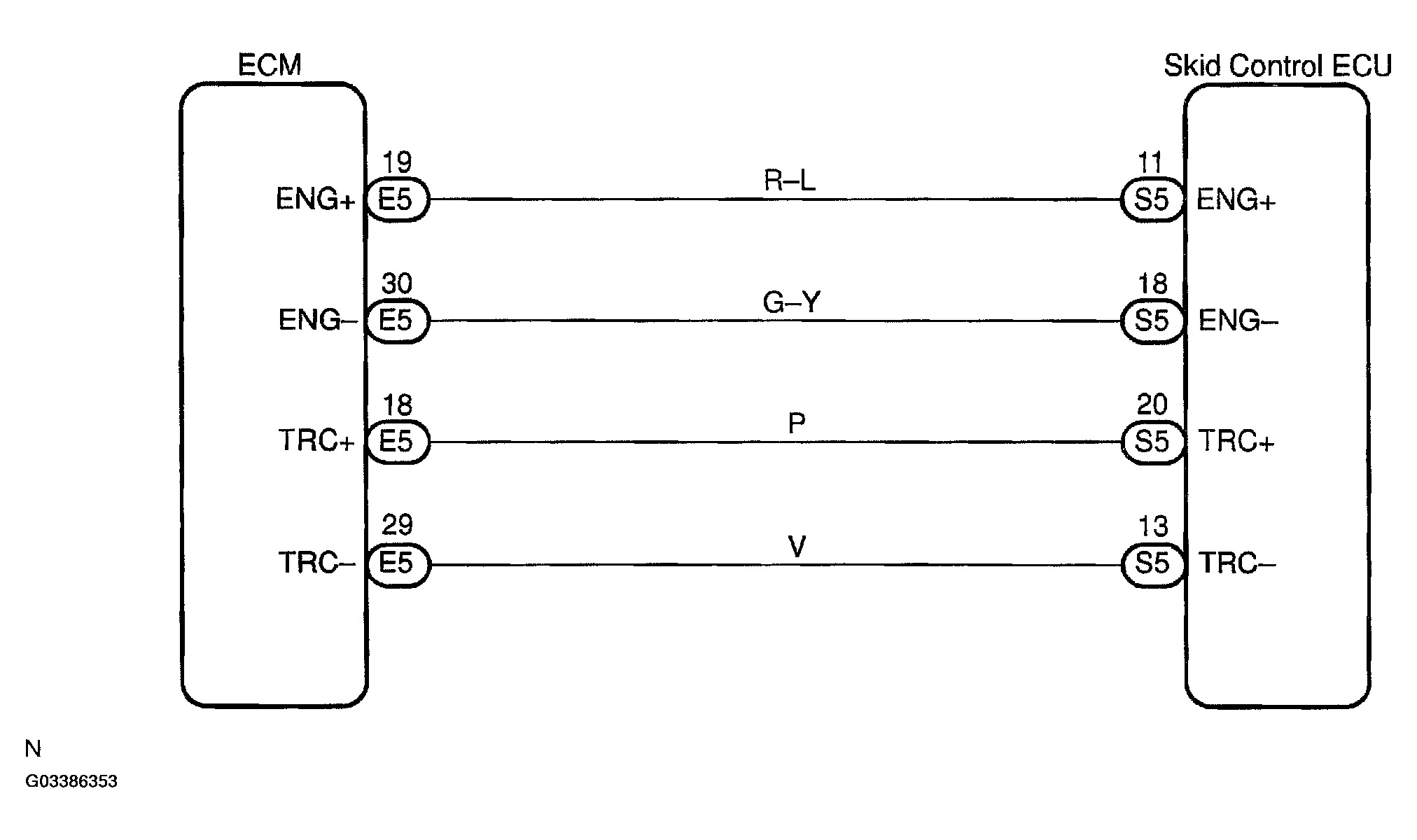

Fig 1: ECM Communication Circuit Malfunction Wiring Diagram

G03386353

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
