DTC C0278/11: Open Circuit In Abs Solenoid Relay Circuit, DTC C0279/12: Short Circuit In Abs Solenoid Relay Circuit: Wiring Diagram

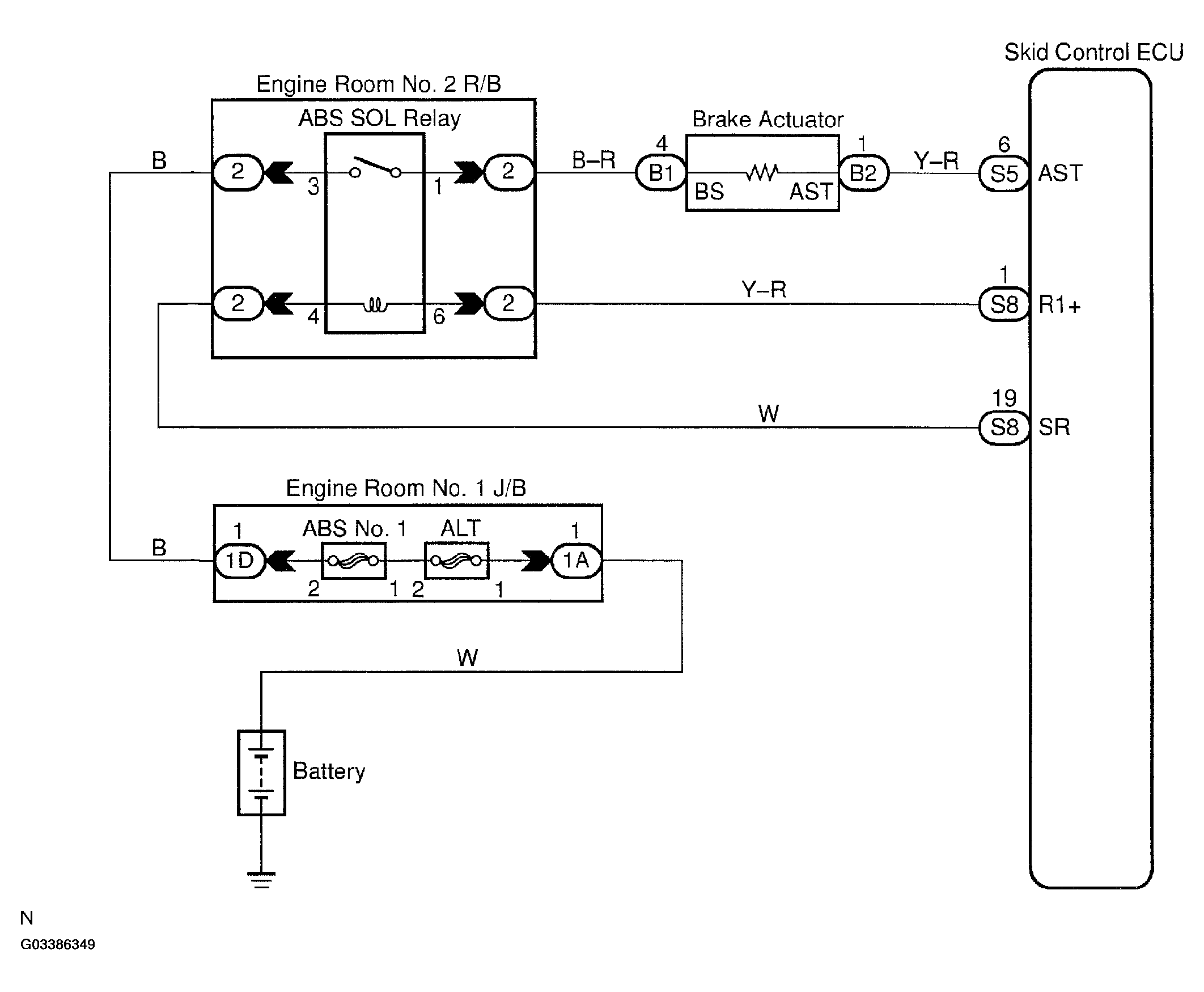

Fig 1: ABS Solenoid Relay Wiring Diagram
G03386349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
