Inspection Procedure

  1. INSPECT BRAKE MASTER CYLINDER SUB-ASSY
    1. Disconnect the 2 connectors (B1 and B3) from the brake master cylinder.
    2. Check continuity between each of terminals B1 - 4 and B3 - 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 and 12 of brake master cylinder connector.

      OK:

      Continuity

    NOTE: Resistance of each solenoid at 20 °C (68 °F)

    SFRH, SFLH, SRRH, SRLH, SRC: 4.75 - 5.25 Ω

    SFRR, SFLR, SRRR, SRLR: 2.00 - 2.40 Ω

    SMC, SPC, STR: 3.5 - 3.9 Ω

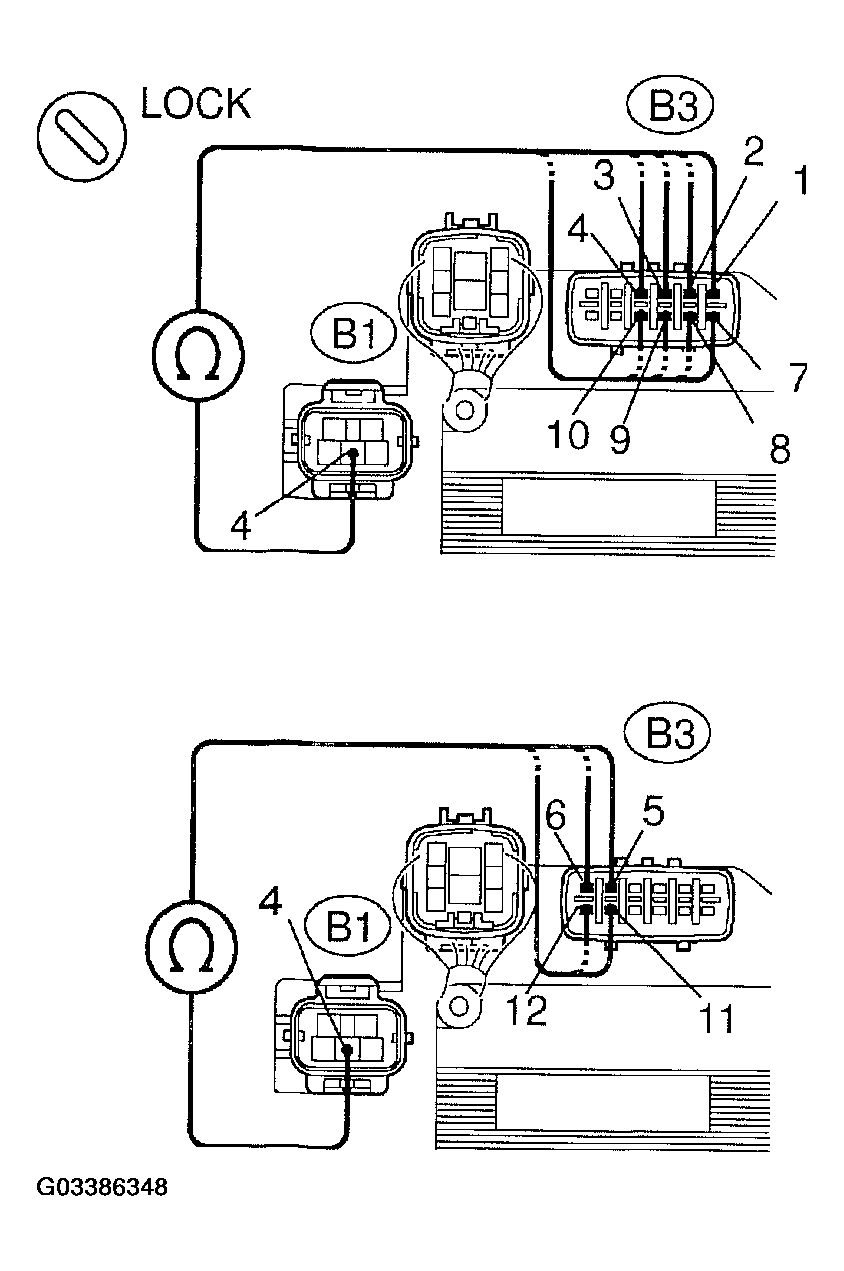

    Fig 1: Checking Continuity Between Brake Master Cylinder Connector Terminals
    G03386348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE BRAKE MASTER CYLINDER SUB-ASSY
    2. OK: Go to next step.
  2. CHECK HARNESS AND CONNECTOR(BRAKE MASTER CYLINDER - SKID CONTROL ECU)
    1. Check for open and short circuit in harness and connector between each solenoid and skid control ECU.
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
    2. OK: CHECK EACH CONNECTION IF SAME CODE IS STILL OUTPUT AFTER DTC DELETION (IF BE DEFECTIVE.)
