DTC Always ON MALFUNCTION IN ABS ECU: Wiring Diagram

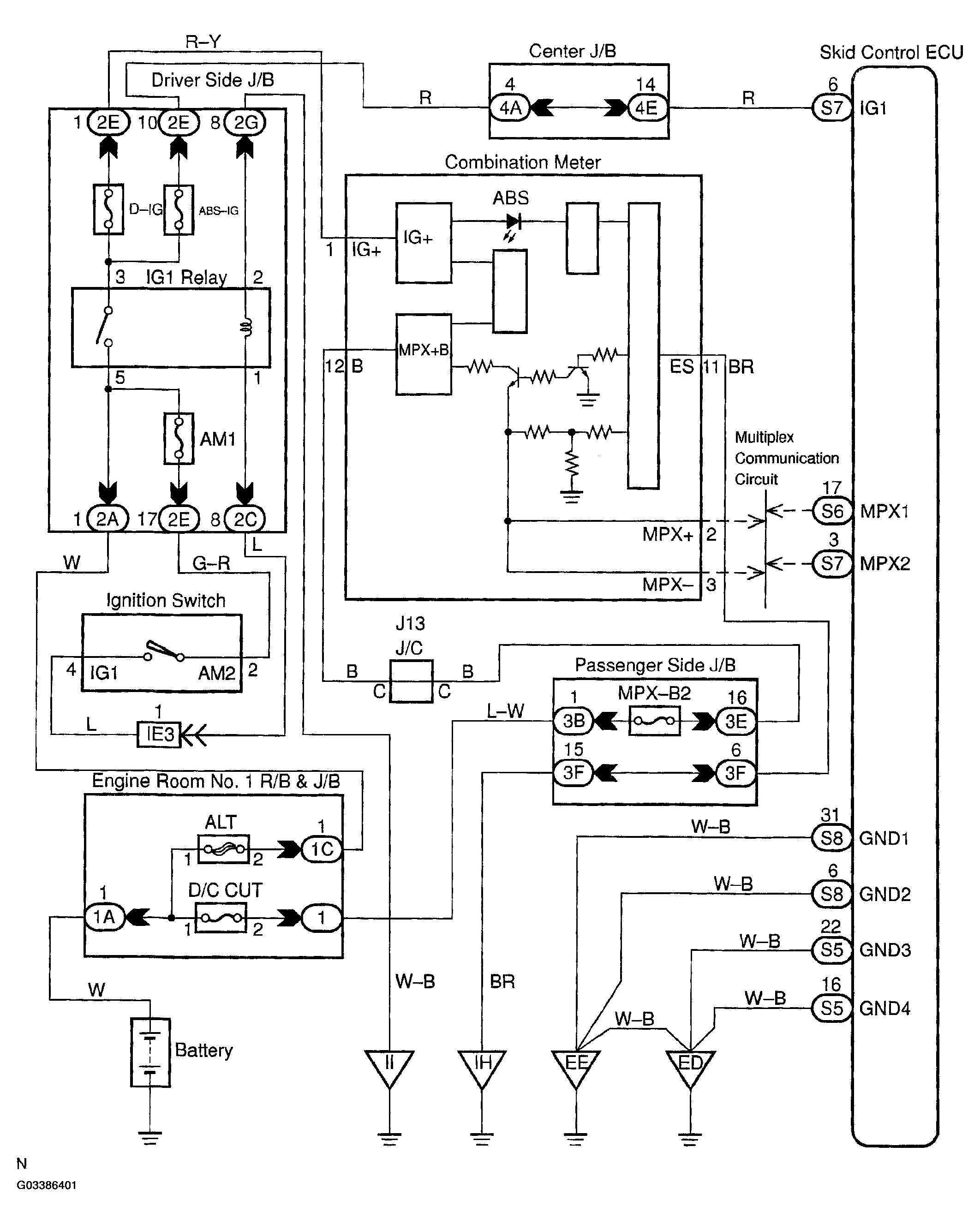

Fig 1: Wiring Diagram - Malfunction In ABS ECU

G03386401

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
