Always On (VSC Warning Light): Wiring Diagram

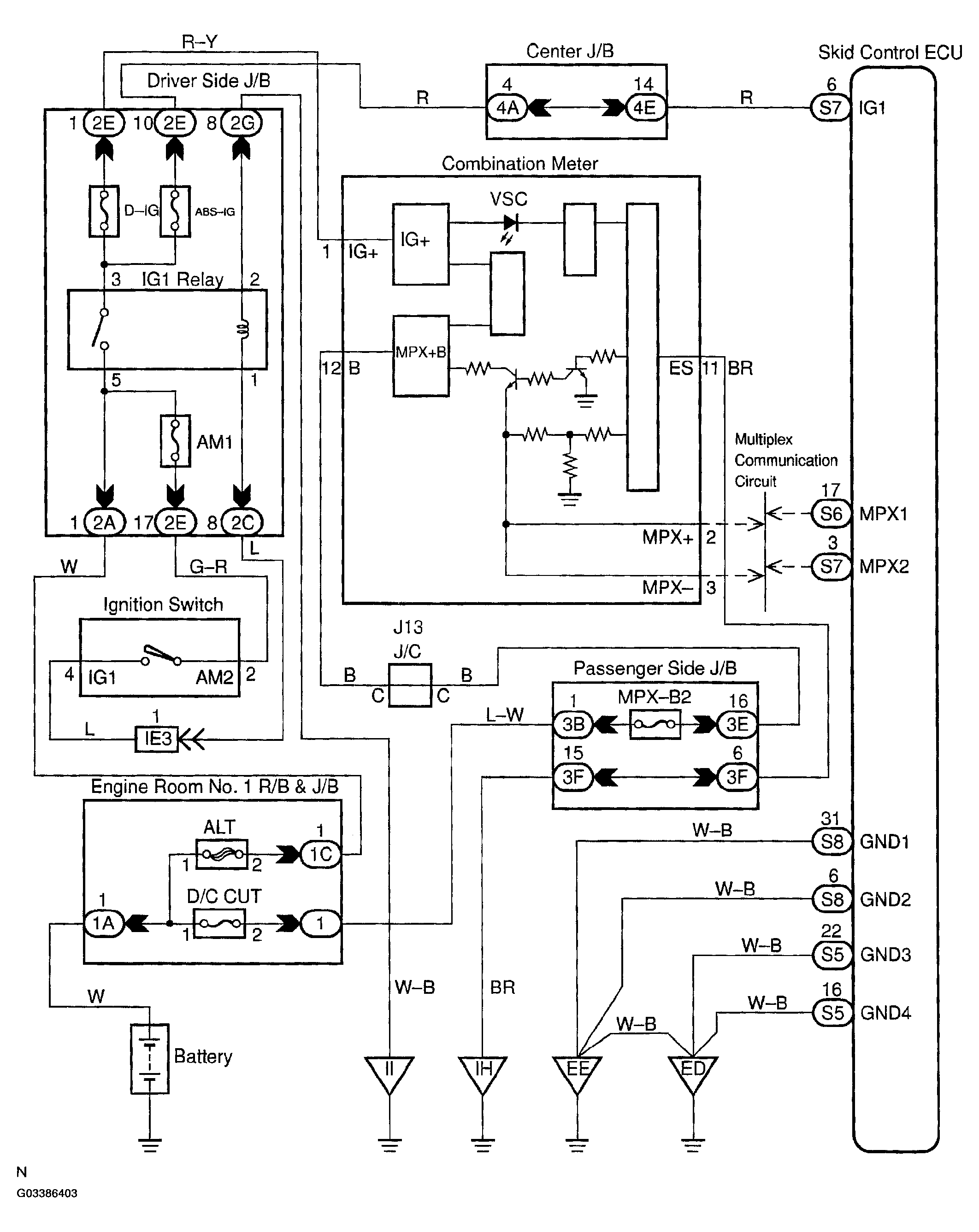

Fig 1: Wiring Diagram - Malfunction In ECU (VSC Warning Light)

G03386403

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
