Slip Indicator Light Circuit: Wiring Diagram

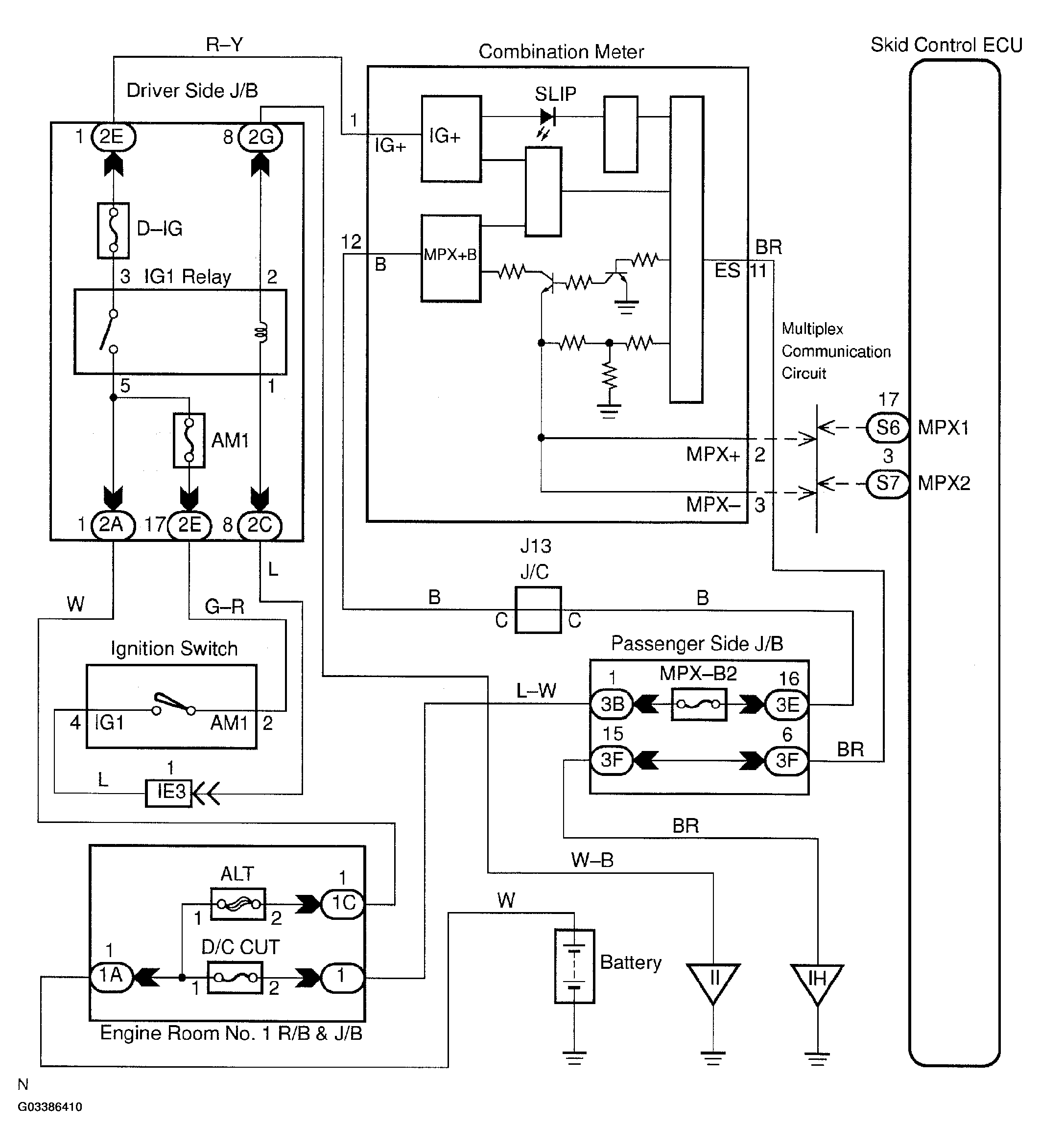

Fig 1: Slip Indicator Light Wiring Diagram

G03386410

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
