Skid Control Buzzer Circuit: Wiring Diagram

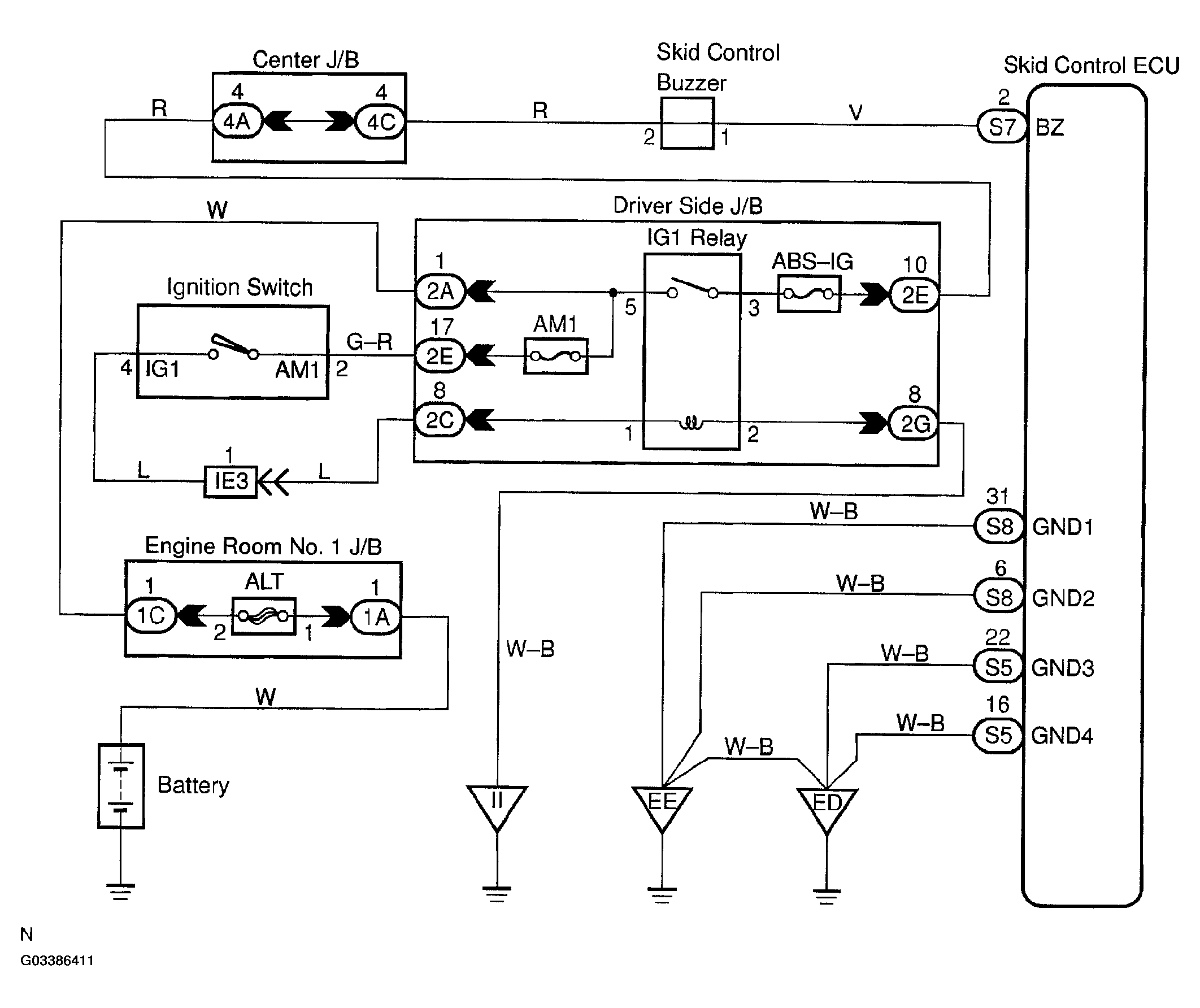

Fig 1: Skid Control Buzzer Wiring Diagram

G03386411

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
